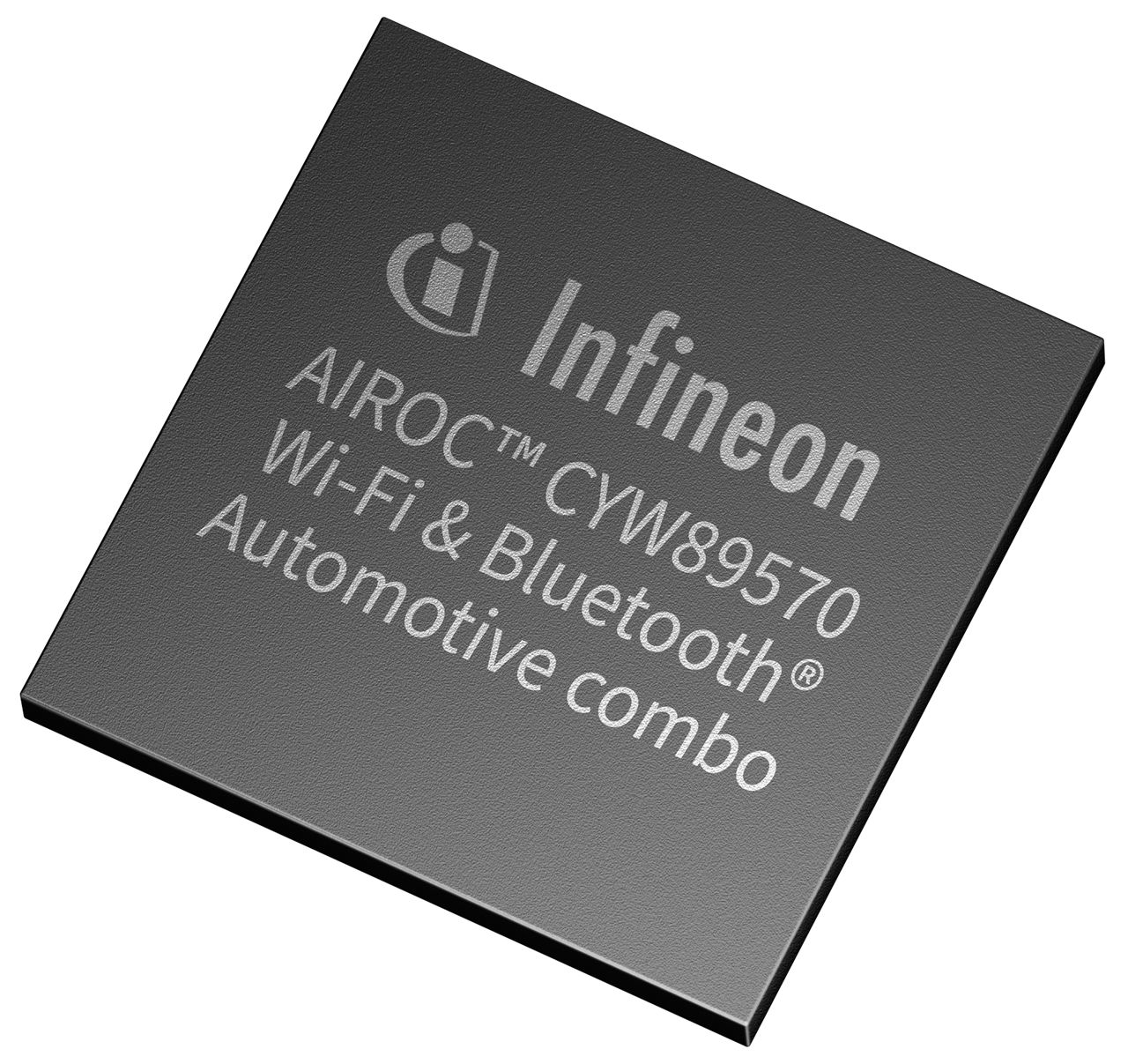

CYW89570

2x2 Wi-Fi 6/6E and Bluetooth® 6.0 Combo for Automotive Applications
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW89570
CYW89570

Product details

  • Bluetooth Capability
    5.2 w/ LE-Audio
  • Bluetooth Interface
    UART
  • Bluetooth Specification
    6.0
  • Driver Support
    Linux, Android
  • Operating Temperature
    -40 °C to 85 °C
  • Wi-Fi Capability
    2x2 MIMO
  • WI-FI Interface
    PCIe, SDIO
  • Wi-Fi Specification
    6, 6E
Recommended
OPN
CYW89570CFFBGT
Product Status active and preferred
Infineon Package
PG-TF2BGA-289
Package Name FCFBGA-289 (002-29083)
Packing Size 1500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TF2BGA-289
Package Name FCFBGA-289 (002-29083)
Packing Size 1500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The AIROC™ CYW89570 family of single-chip devices supports 2x2 MIMO, dual-band/tri-band, IEEE 802.11ax-compliant Wi-Fi 6/6E, and Bluetooth®/Bluetooth® Low Energy 6.0 with LE-Audio

Features

  • Tri-band operation (2.4GHz, 5GHz, 6GHz)
  • Wi-Fi 6/6E (802.11ax) compliant
  • Integrated on-chip PAs
  • Integrated on-chip LNAs
  • Integrated on-chip PMU
  • Supported shared Wi-Fi and BT antenna
  • Bluetooth® LE-Audio Unicast and Auracast

Applications
