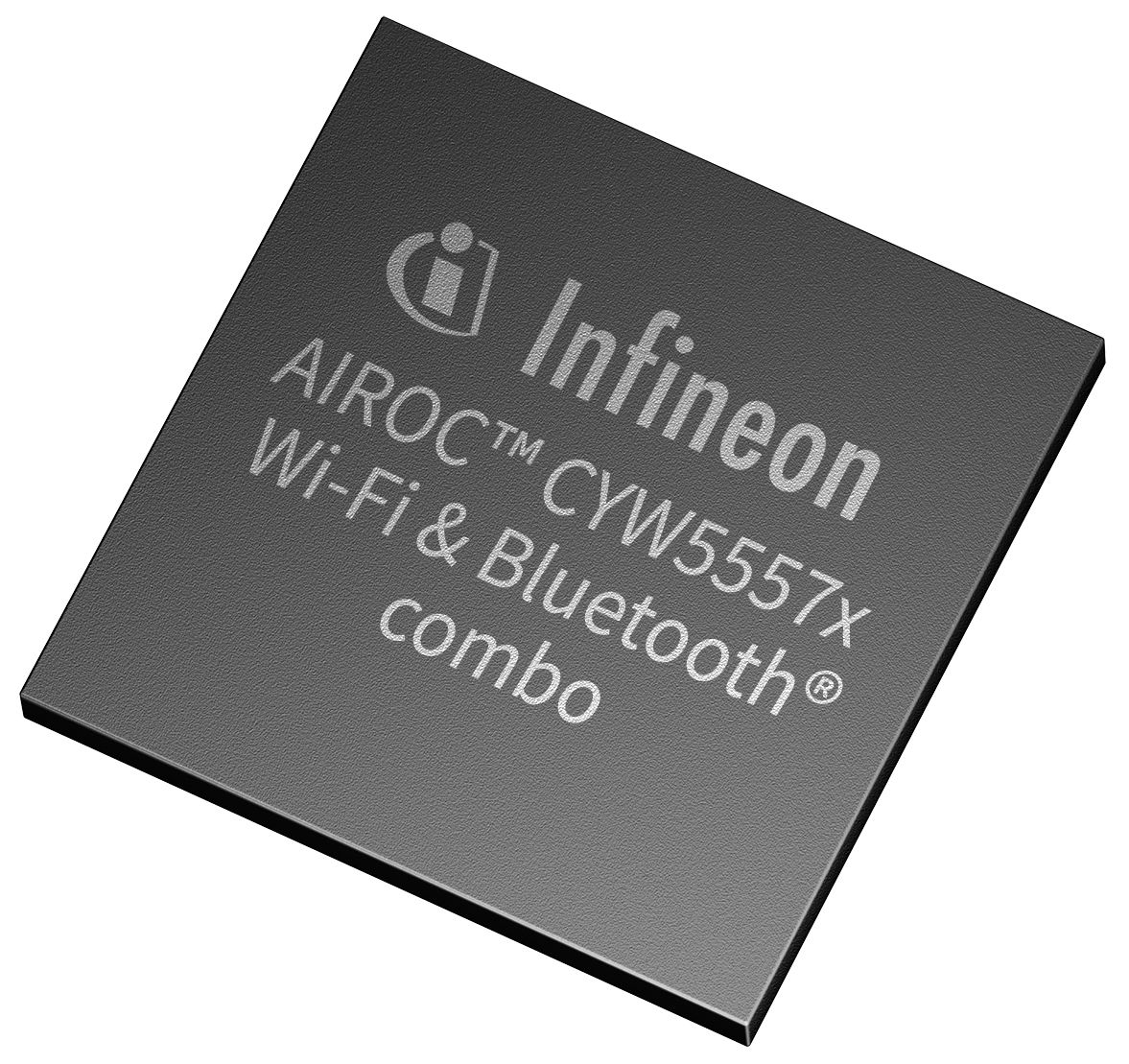

CYW55573

Wi-Fi 6E 2x2 tri-band and Bluetooth® 6.0 Combo IC
Data Sheet
board
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW55573
CYW55573
ea.
Data Sheet

Product details

  • Antenna Configuration
    2x2
  • Bluetooth Interface
    UART/PCM/I2S
  • Bluetooth Specification
    Bluetooth 5.3
  • Core
    Cortex M33
  • CPU
    N/A
  • Dimensions
    12 x 12 mm, 5.32 x 5.67 mm, 5.3 x 5.7 mm
  • Family
    AIROC™ Wi-Fi + Bluetooth® Combos
  • Launch Date
    2023
  • Longevity - 15 years
    Yes
  • Longevity - Extended
    No
  • Memory
    N/A
  • Operating system support
    Linux, Android
  • Operating Temperature
    -40 °C to 85 °C
  • Operating Voltage
    3 V to 4.8 V
  • Package
    WLCSP-486, WLBGA-225, FCFBGA-289
  • Partner Module
    Y
  • Pitch
    0.35 mm, 0.2 mm, 0.65 mm
  • Planned to be available until at least
    01-01-2038
  • Product Description
    Wi-Fi 6 Combo
  • ROM
    2048 KB
  • SRAM
    512 kByte
  • Wi-Fi Band
    2.4GHz, 5GHz, 6GHz
  • Wi-Fi Bandwidth
    80 MHz
  • WI-FI Interface
    SDIO/PCIe
  • Wi-Fi Specification
    Wi-Fi 6E (802.11ax)
Recommended
OPN
CYW55573MIWBGT CYW55573MIFFBGT CYW55573MIUBGT
Product Status active and preferred active and preferred active and preferred
Infineon Package SG-XFWLB-486
PG-TF2BGA-289
SG-UFWLB-225
Package Name WLCSP-486 (002-29726) FCFBGA-289 (002-29083) WLBGA-225 (002-36128)
Packing Size 5000 1500 5000
Packing Type TAPE & REEL TAPE & REEL TAPE & REEL
Moisture Level 1 3 1
Moisture Packing NON DRY DRY NON DRY
Lead-free Yes No Yes
Halogen Free Yes No Yes
RoHS Compliant Yes Yes Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package SG-XFWLB-486
Package Name WLCSP-486 (002-29726)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status
Active
Infineon Package
PG-TF2BGA-289
Package Name FCFBGA-289 (002-29083)
Packing Size 1500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status
Active
Infineon Package SG-UFWLB-225
Package Name WLBGA-225 (002-36128)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The AIROC™ CYW55573 is Infineon's highest-performing tri-band Wi-Fi 6/6E (2.4G, 5G, 6G) 2x2 MIMO solution. It features improved range, power efficiency, network robustness, and security, while reducing the total Bill of Materials cost and board space. The solution delivers a high-quality video/audio streaming and seamless connectivity experience in congested network environments and significantly reduces latency by operating in the 6G spectrum.

Features

  • Wi-Fi 6/6E, Tri-band, 2x2 MIMO
  • 20/40/80 MHz, up to 1.2 Gbps PHY rate
  • OFDMA, MU-MIMO, TWT,DCM
  • Enhanced range, pwr & network efficiency
  • Multi-layer security protection
  • Smart coexistence
  • Temperature: -40°C to 85°C
  • Bluetooth® 5.3, Dual-mode operation
  • LE audio w/Auracast, LE- 2M, LR, Adv Ext
  • Bluetooth transmit at 20dbm/13dbm/0 dbm

Benefits

  • Performance beyond Wi-Fi 6/6e
  • Maximizes network efficiency
  • Extended edge AI+IoT device capabilities
  • High quality Bluetooth® LE audio
  • Multi-layer security protection
  • Accelerates time to market
  • Reduces development costs

Diagrams

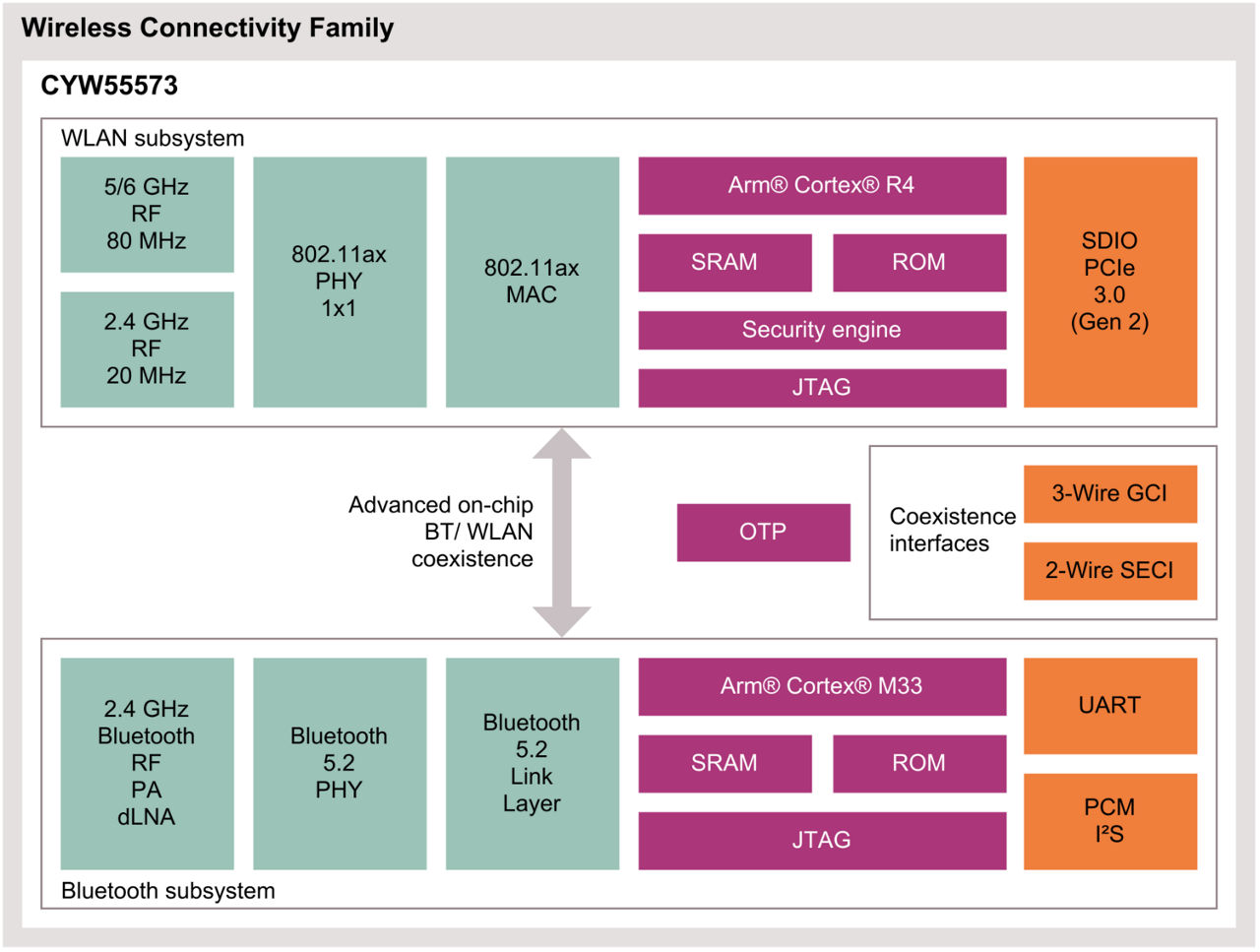

CYW55573 Block Diagram
CYW55573 Block Diagram
CYW55573 Block Diagram CYW55573 Block Diagram CYW55573 Block Diagram
×
