CYW43907
CYW43907

Product details

  • Antenna Configuration
    1x1
  • Bluetooth Interface
    N/A
  • Bluetooth Specification
    N/A
  • CPU
    300MHz
  • Memory
    2MB SRAM
  • Operating system support
    RTOS
  • Operating Temperature
    -30 °C to 85 °C
  • Product Description
    Wi-Fi 4 Connectivity Processor
  • Wi-Fi Band
    2.4Ghz, 5GHz
  • WI-FI Interface
    N/A
  • Wi-Fi Specification
    Wi-Fi 4 (802.11n)
Recommended
OPN
CYW43907KWBGT
Product Status active
Infineon Package
SG-UFWLB-316
Package Name WLCSP-316 (002-13204)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
SG-UFWLB-316
Package Name WLCSP-316 (002-13204)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

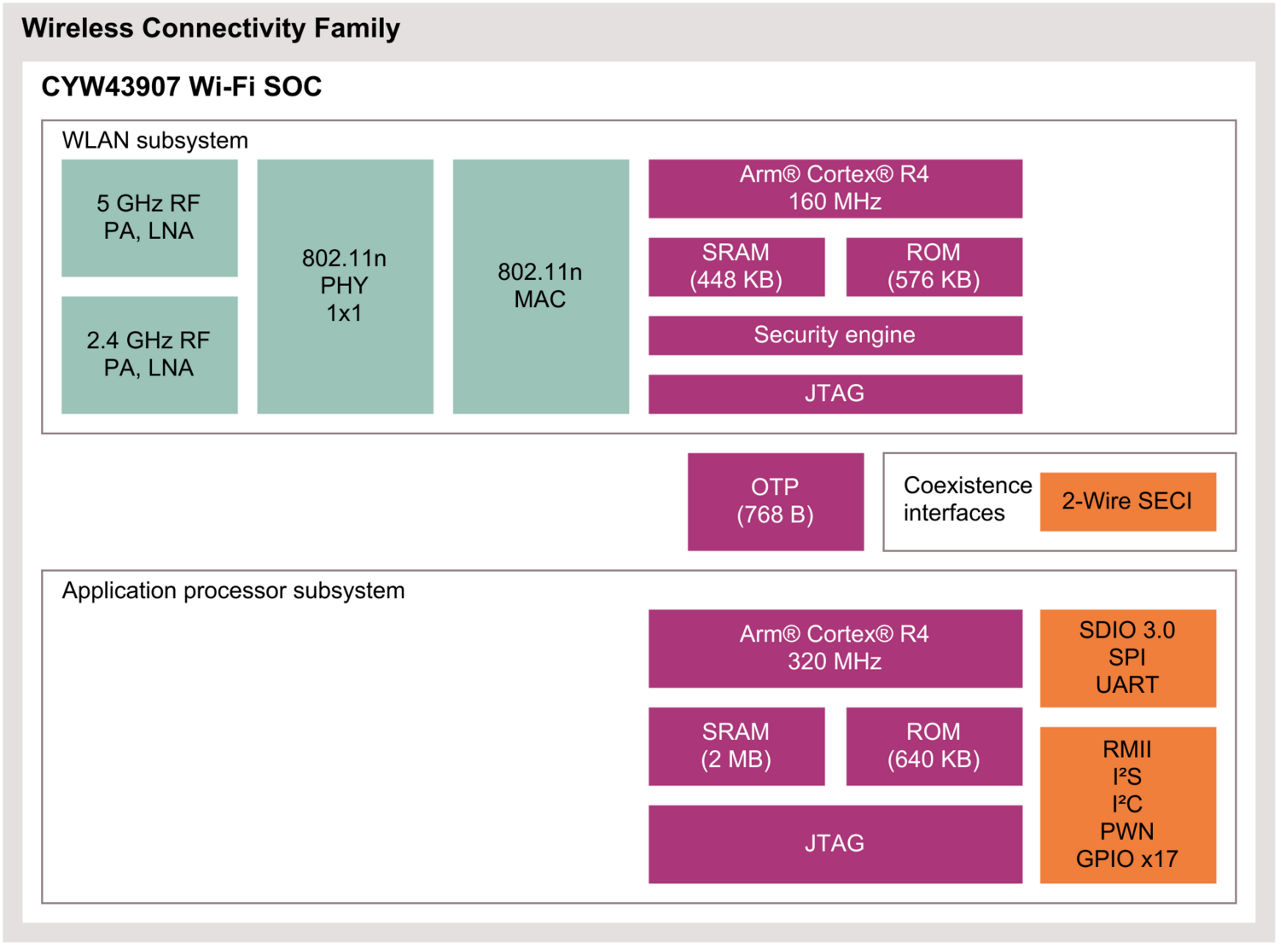

Infineon’s AIROC™ CYW43907 is a Wi-Fi 4 (802.11n) dual-band Wi-Fi SoC with embedded 320 MHz Arm® Cortex®-R4 application processor and 2 MB of on-chip memory. With a powerful processor, large on-chip memory, rich set of peripherals, 802.11n connectivity and networking stack provided by Infineon’s ModusToolbox™, the CYW43907 offers everything needed to quickly build a wide variety of secure cloud applications without relying on a host processor.

Features

  • 320MHz ARM Cortex R4
  • SRAM (2MB)
  • ROM (640KB)
  • 802.11b/g/n, Dual-band (2.4/5 GHz)
  • 20/40 MHz, up to 150 Mbps PHY rate
  • VHT20/40 for 5 GHz, HT20 for 2.4 GHz
  • Optional external PA for 5GHz
