Active and preferred
RoHS Compliant
Lead-free

CYUSB2304-BVXA

Automotive four-ports ganged USB 2.0 controller, tray packing
Data Sheet
package
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYUSB2304-BVXA
CYUSB2304-BVXA
Data Sheet

Product details

  • # of DS ports
    4
  • # of US ports
    1
  • Applications
    Cockpit domain controller, Head unit, In-vehicle infotainment
  • Family
    EZ-USB™ HX3 Auto
  • Features
    Ghost charge™, Shared Link™
  • Operating Temperature
    -40 °C to 85 °C
  • Operating Voltage
    3 V to 3.6 V
  • Package Type
    100-ball BGA
  • Product Category
    Hub Controllers
  • Product Description
    Automotive USB 2.0 Hub
  • Software Tools
    Y
  • Temperature grade
    Automotive Grade-A
  • USB Speed
    480 MBit/s
  • USB Standard
    USB 2.0 HS
Recommended
OPN
CYUSB2304-BVXA
Product Status active and preferred

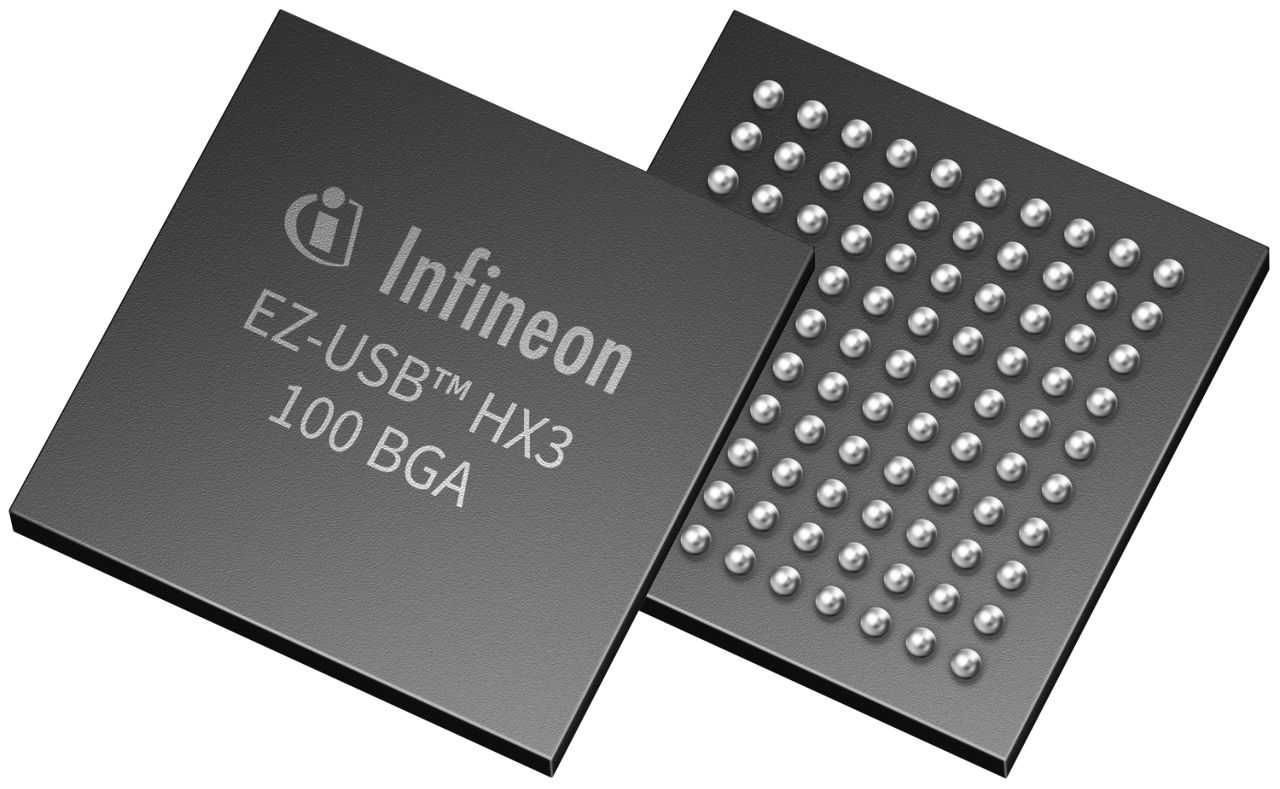

Infineon Package
PG-VFBGA-100
Package Name VFBGA-100 (51-85209)
Packing Size 4290
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VFBGA-100
Package Name VFBGA-100 (51-85209)
Packing Size 4290
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Features

  • AEC-Q100 compliance
  • USB 2.0 480Mbps
  • Four downstream ports
  • Ghost charge
  • Ganged
  • Battery charging v1.2
  • Apple charging
  • Multi transaction translator
  • I2C serial communcation
  • ARM® Cortex® CM0 MCU
  • Driver strength control
  • 100-ball BGA

Benefits

  • USB-IF compliance
  • AEC-Q100 qualified
  • Robust interoperability
  • Enhanced connectivity & flexible design
  • Driver strength control
  • External EEPROM programming via USB
  • Shared link for embedded applications

Applications
