CYPAS213A1-24SXQT

Integrated secondary-side controller with USB PD and SR
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYPAS213A1-24SXQT
CYPAS213A1-24SXQT
ea.
Data Sheet

Product details

  • Applications
    USB-C PD chargers and adapters
  • Family
    EZ-PD™ PAG2S
  • Flash
    64 kByte
  • Flyback converter type
    QR, CrCM, DCM, CCM
  • GPIOs
    4
  • Operating Temperature
    -40 °C to 105 °C
  • Operating Voltage
    3.3 V to 30 V
  • Package Type
    24-pin QFN
  • Peak Reflow Temp
    260 °C
  • Product Category
    AC-DC DC-DC PD solutions
  • Product Description
    PS integrated USB PD and synchronous-rectification controller
  • Protection features (OVP, OCP, SCP and ESD)
    Y
  • Software Tools
    EZ-PD™ Configuration, ModusToolBox™
  • SRAM
    8 kByte
  • Temperature grade
    Extended Industrial
  • USB Standard
    USB-PD 3.1
  • VBUS Short Protection
    Y
  • VCONN FET
    Y
Recommended
OPN
CYPAS213A124SXQTXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-24
Package Name SOIC-24 (51-85025)
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-24
Package Name SOIC-24 (51-85025)
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

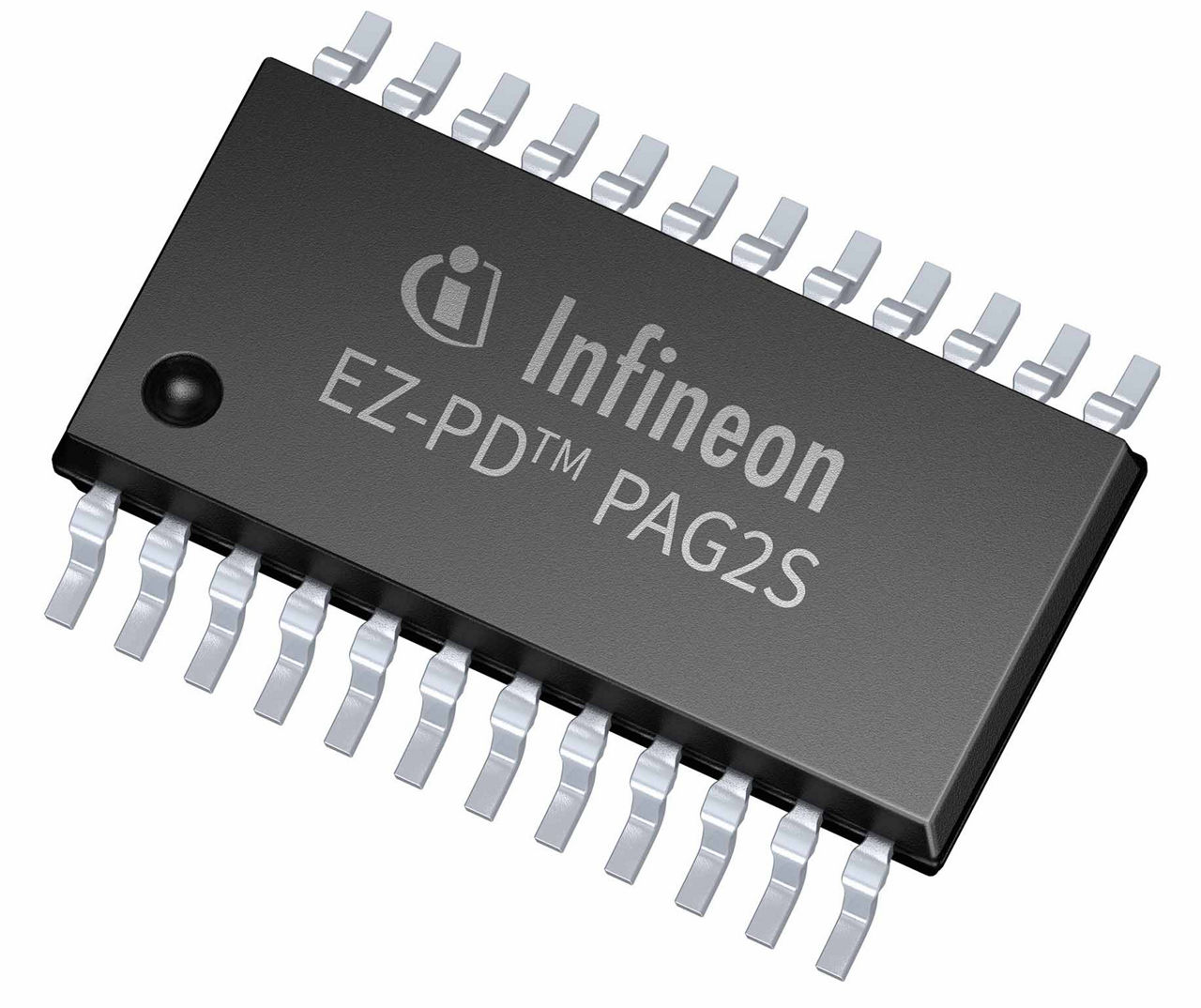

EZ-PD™ PAG2S CYPAS213A1-24SXQ works as PD + SR integrated controller by pairing with any 3rd party PWM controller. The device’s synchronous rectifier (SR) supports fast turn-on delay and turn-off delay, DCM and CCM primary converters, logical and non-logical level MOSFET, and volt-second integration scheme to avoid false SR turn-on.

Features

  • Volt-second Integration
  • 20 kHz - 300 kHz switching frequency
  • Support DCM and CCM primary converter
  • USB PD and SR
  • 28V EPR
  • 24-SOIC package
  • Tape and reel packing

Benefits

  • High programmability
  • High system integration with lower BOM
  • High-efficient
  • Low standby power
