Active and preferred
RoHS Compliant
Lead-free

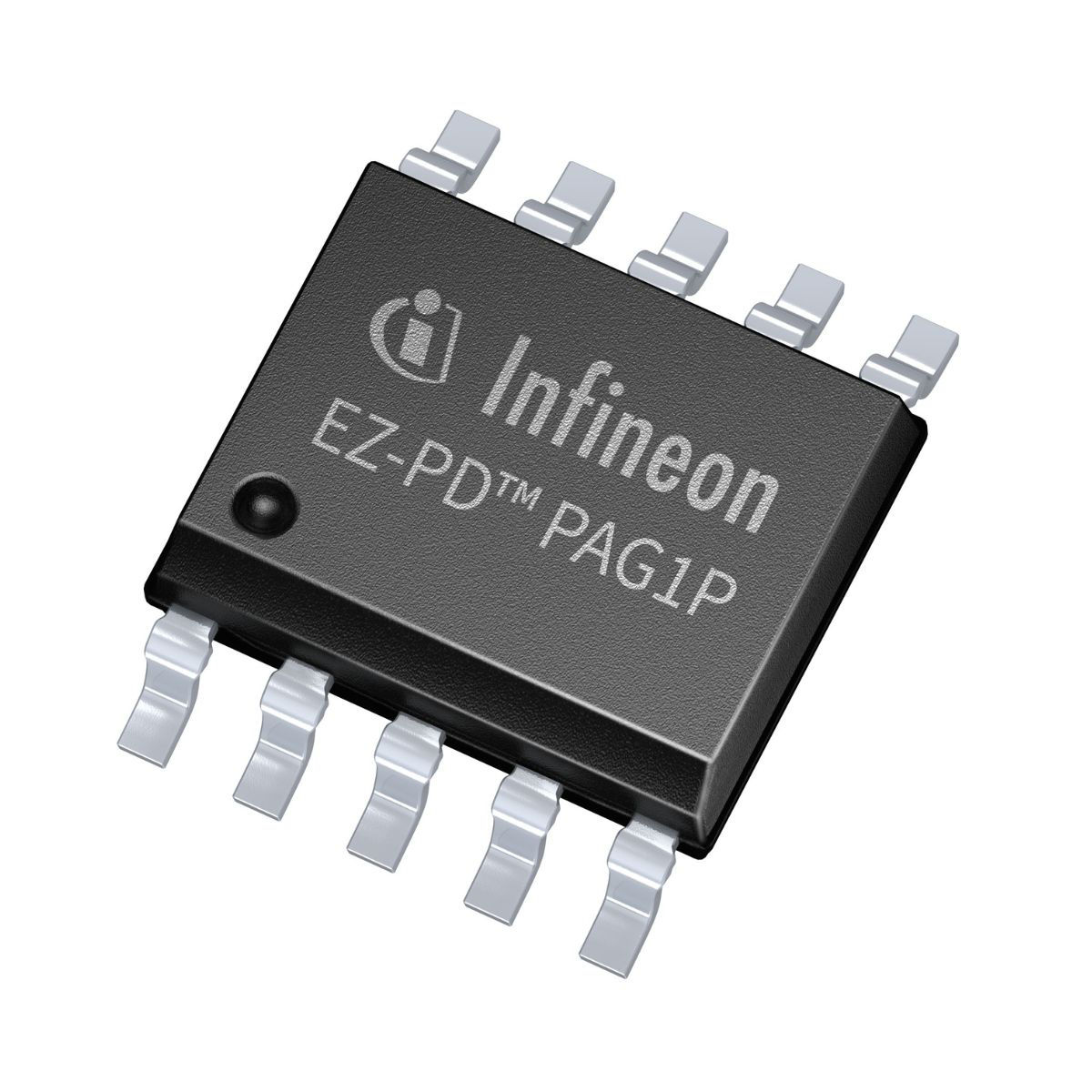

CYPAP112A3-10SXQ

Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYPAP112A3-10SXQ
CYPAP112A3-10SXQ
Data Sheet

Product details

  • Applications
    USB-C PD chargers and adapters
  • Family
    EZ-PD™ PAG1P
  • Flyback converter type
    Secondary-controlled AC/DC flyback
  • Operating Temperature
    -40 °C to 105 °C
  • Operating Voltage
    1.5 V to 22 V
  • Package Type
    10-pin SOIC
  • Peak Reflow Temp
    260 °C
  • Product Category
    AC-DC DC-DC PD solutions
  • Product Description
    Primary side startup controller
  • Protection features (OVP, OCP, SCP and ESD)
    Y
  • Software Tools
    EZ-PD™ Configuration, PSoC™ Creator
  • Temperature grade
    Extended Industrial
  • USB Standard
    USB-PD 2.0
  • VBUS Short Protection
    N
  • VCONN FET
    N
Recommended
OPN
CYPAP112A3-10SXQ
Product Status active and preferred
Infineon Package
PG-DSO-10
Package Name SOIC-10 (002-26358)
Packing Size 4850
Packing Type TUBE
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-DSO-10
Package Name SOIC-10 (002-26358)
Packing Size 4850
Packing Type TUBE
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
