Active and preferred
RoHS Compliant
Lead-free

CY15B108QN-20BFXI

Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CY15B108QN-20BFXI
CY15B108QN-20BFXI
Data Sheet

Product details

  • Density
    8 MBit
  • Family
    Excelon
  • Frequency
    20 MHz
  • Interfaces
    SPI
  • Lead Ball Finish
    Ni/Au
  • Operating Temperature range
    -40 °C to 85 °C
  • Operating Voltage range
    1.8 V to 3.6 V
  • Organization (X x Y)
    1Mb x 8
  • Peak Reflow Temp
    260 °C
  • Planned to be available until at least
    2033
  • Qualification
    Industrial
Recommended
OPN
CY15B108QN20BFXIXQLA1
Product Status active and preferred

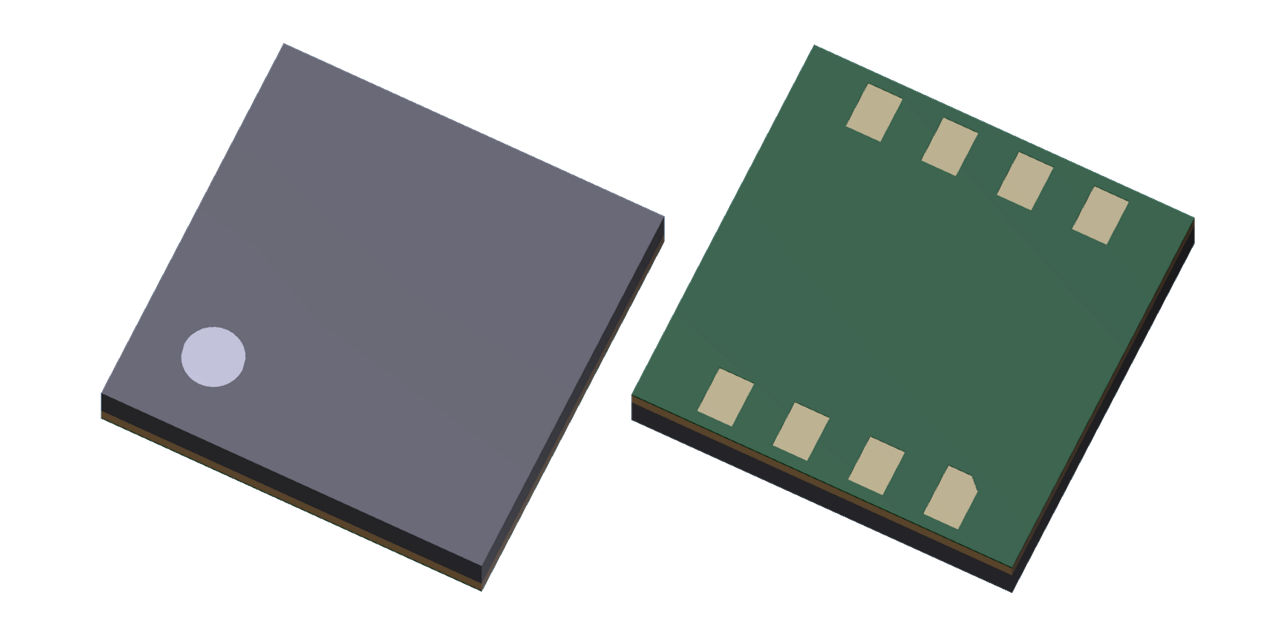

Infineon Package
PG-UFLGA-8
Package Name LGA-8 (002-34146)
Packing Size 4900
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-UFLGA-8
Package Name LGA-8 (002-34146)
Packing Size 4900
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The CY15B108QN-20BFXI is an 8-Mb EXCELON™ LP Ferroelectric RAM (F-RAM) with SPI up to 40 MHz, organized as 1024K × 8. It delivers virtually unlimited endurance with 10^15 read/write cycles and 151-year data retention at 60°C. Operating from 1.8 V to 3.6 V across –40°C to +85°C, it features advanced write protection and low-power modes down to 0.1 µA. Available in an 8-pin UFLGA package, it is RoHS compliant and ideal for industrial applications requiring reliable memory.

Features

  • 8-Mb ferroelectric RAM, 1024K × 8
  • Virtually unlimited 10^15 read/write cycles
  • 151-year data retention at 70°C
  • Fast SPI interface up to 40 MHz
  • Supports SPI modes 0 and 3
  • Instant non-volatile write, no delay
  • Low active current: 2.6 mA at 40 MHz
  • Deep power-down and hibernate modes
  • Hardware and software write protection
  • Unique device and serial number IDs
  • 256-byte special sector for secure storage
  • Industrial temperature range: –40°C to +85°C

Benefits

  • Reliable data even after 151 years
  • No write delays, instant memory updates
  • Handles frequent, rapid data logging
  • 40 MHz SPI enables fast system access
  • Low power extends battery life
  • Multiple power modes save energy
  • Secure storage for sensitive data
  • Write protection prevents data corruption
  • Unique ID simplifies traceability
  • Drop-in replacement for serial EEPROM/flash
  • Operates in harsh industrial environments
  • High endurance reduces maintenance needs

Applications
