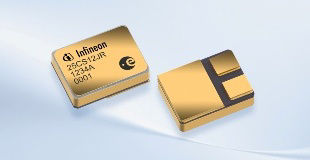

BUY25CS12J-01 (ES)

Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BUY25CS12J-01 (ES)
BUY25CS12J-01 (ES)
Data Sheet

Product details

  • Comments
    Package SMD05
  • Die Size
    3
  • Download Model
    https://www.infineon.com/api/redirect/ispn/BUY25CS12J-01 (ES)/#!simulation
  • ESD Class
    class 1C
  • Generation
    PowerMOS
  • ID max
    12.4 A
  • IDpuls
    50 A
  • Language
    SPICE
  • Optional TID Rating (kRad(si))
    100
  • Package
    SMD-0.5
  • Polarity
    N
  • Product Category
    Rad tol MOSFETs
  • Ptot max
    75 W
  • QG
    25 nC
  • QPL Part Number
    5205/026
  • Qualification
    ESA
  • RDS (on) max
    130 Ω
  • TID max
    100 Krad(Si)
  • VBRDSS
    250 V
  • VDS
    250 V
  • VF max
    1.2 V
  • VGS
    +/-20 V
Recommended
OPN
BUY25CS12J01ESZZZA1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size N/A
Packing Type N/A
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 0
Packing Type
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
Radiation Hard Power Switch 250V/12A

Features

  • Low RDS(on)
  • Single Event Effect (SEE) hardened
    LET 85, Range: 118μm VGS = -10V, VDS = 250V, approved
    LET 55; Range: 90µm VGS = -15V, VDS = 250V, approved
  • Total Ionisation Dose (TID) hardened 100 kRad approved (Level R)
  • Hermetically sealed
  • N-channel
