BTS50010-1LUA

Single channel smart high-side power switch providing protective functions and diagnosis
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTS50010-1LUA
BTS50010-1LUA
ea.
Data Sheet

Product details

  • Certifications
    ISO 26262-ready
  • Channels
    1
  • Classification
    ISO 26262-ready
  • Diagnostics
    Sense
  • Family
    Power PROFET™ + 12V
  • IL (Short Circuit Current)
    90 A
  • Load Current
    46 A
  • Mounting
    SMD
  • Nominal Load Current per channel
    46 A
  • Operating Temperature
    -40 °C to 150 °C
  • Currently planned availability until at least
    2033
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 25°C)
    1 mΩ
  • RDS (on) (@ Tj = 150°C) max
    2 mΩ
  • Recommended Operating Voltage
    3.1 V to 28 V
  • toff (Turn OFF time) max
    220 µs
  • ton (Turn ON time) max
    190 µs
Recommended
OPN
BTS500101LUAAUMA1
Product Status active and preferred

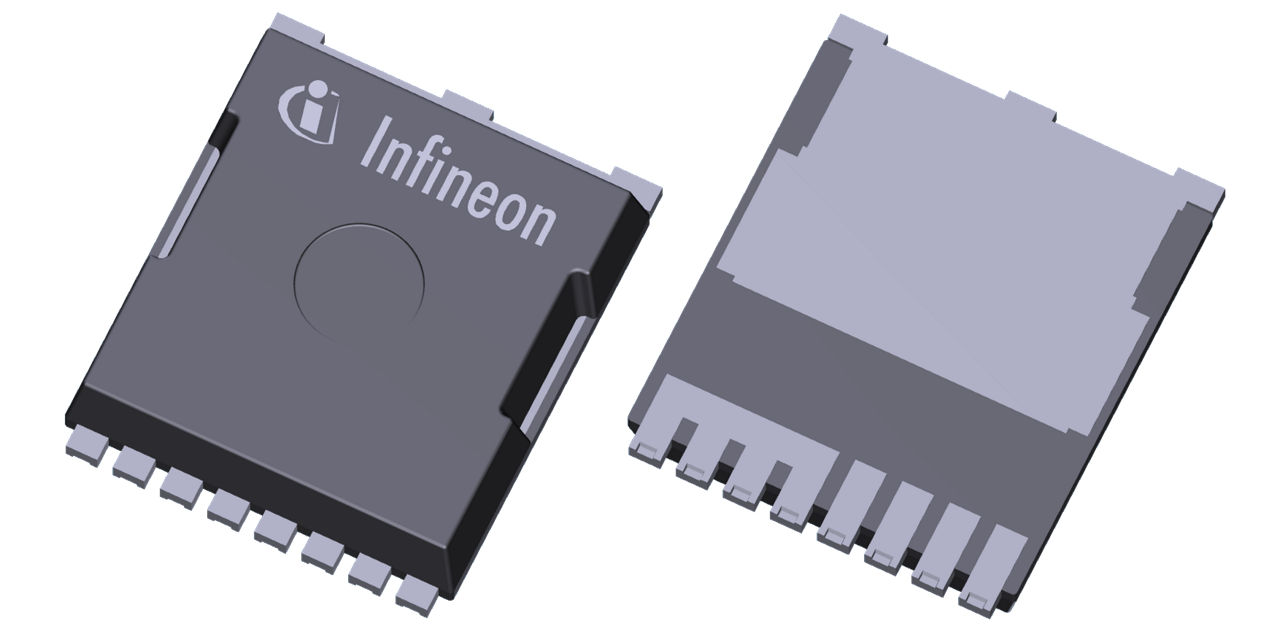

Infineon Package
PG-HSOF-8
Package Name N/A
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-HSOF-8
Package Name -
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Introducing BTS50010-1LUA, a new member of Power PROFET™ +12V family. This 1.0mΩ single channel high-side power switch comes in an 8-pin TO-leadless package. It offers reverse polarity protection and diagnosis, with a N-channel power MOSFET and charge pump. Ideal for harsh automotive environments, it can drive loads up to 42A, powering heaters, glow plugs, fans, and pumps.

Features

  • Low stand-by current
  • Rev ON low power diss in rev batt cond
  • Ground loss protection
  • Electrostatic discharge protection (ESD)
  • Optimized electromagnetic compatibility
  • Compatible to cranking pulses
  • Integrated diagnostic functions
  • Integrated protection functions
  • AEC-Q100 qualification

Benefits

  • ISO26262-ready supporting the integrator
  • Accurate current sensing
  • Support dependable power supply
