BTS436L2G

The BTS436L2G is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTS436L2G
BTS436L2G
ea.
Data Sheet

Product details

  • Channels
    1
  • Current Limit (at 25°C) min
    39 A
  • Diagnostics
    Status
  • Family
    Classic PROFET™ 12V
  • IL (Short Circuit Current)
    40 A
  • Load Current
    9.8 A
  • Mounting
    SMD
  • Nominal Load Current per channel (All channels active)
    9.8 A
  • Operating Temperature
    -40 °C to 150 °C
  • Currently planned availability until at least
    2033
  • Ptot max
    75 W
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 25°C)
    35 mΩ
  • RDS (on) (@ Tj = 150°C) max
    72 mΩ
  • Recommended Operating Voltage
    4.7 V to 41 V
  • toff (Turn OFF time) max
    250 µs
  • ton (Turn ON time) max
    200 µs
Recommended
OPN
BTS436L2GATMA1
Product Status active and preferred

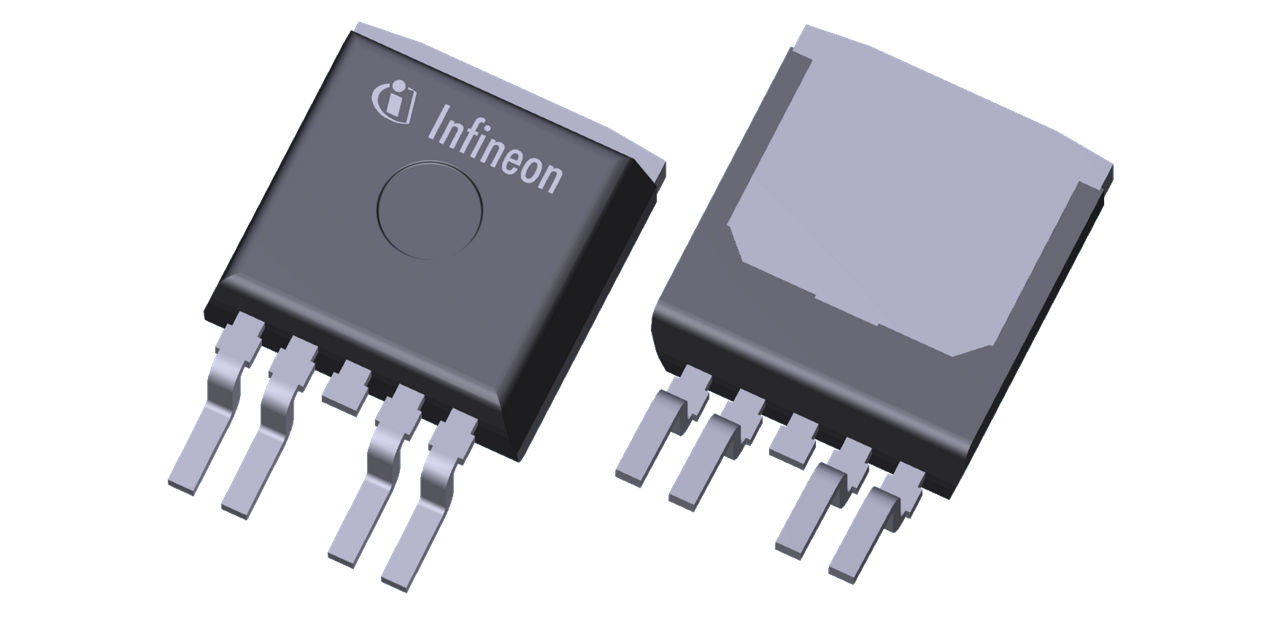

Infineon Package
PG-TO263-5
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO263-5
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

Features

  • Very low standby current
  • CMOS compatible input
  • Fast demagnetization of inductive loads
  • Stable behaviour at undervoltage
  • Wide operating voltage range
  • Logic ground separate from load ground
  • Short circuit protection
  • Overload protection
  • Current limitation
  • Thermal shutdown
  • Overvoltage protection (inc. load dump)
  • Reverse battery protection
