BTH6200-4ESA

NEW
RDS(on) @ Tj = 25°C: 200 mΩ | 4 channels | Vs (extended) = 60V | PRO-SIL™ ISO 26262-ready
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTH6200-4ESA
BTH6200-4ESA
Data Sheet

Product details

  • Certifications
    ISO 26262-ready
  • Channels
    4
  • Diagnostics
    Current Sense
  • Family
    PROFET™ + 48V
  • IL Nominal Current
    1 A
  • IL (Short Circuit Current)
    9 A
  • Mounting
    SMT
  • Operating Temperature min
    -40 °C
  • Operating Temperature max
    150 °C
  • Qualification
    Automotive
  • Recommended Operating Voltage min
    8 V
  • Recommended Operating Voltage max
    60 V
  • toff (Turn OFF time) max
    180 µs
  • ton (Turn ON time) max
    180 µs
Recommended
OPN
BTH62004ESAXUMA1
Product Status active and preferred
Infineon Package
PG-TSDSO-24
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TSDSO-24
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

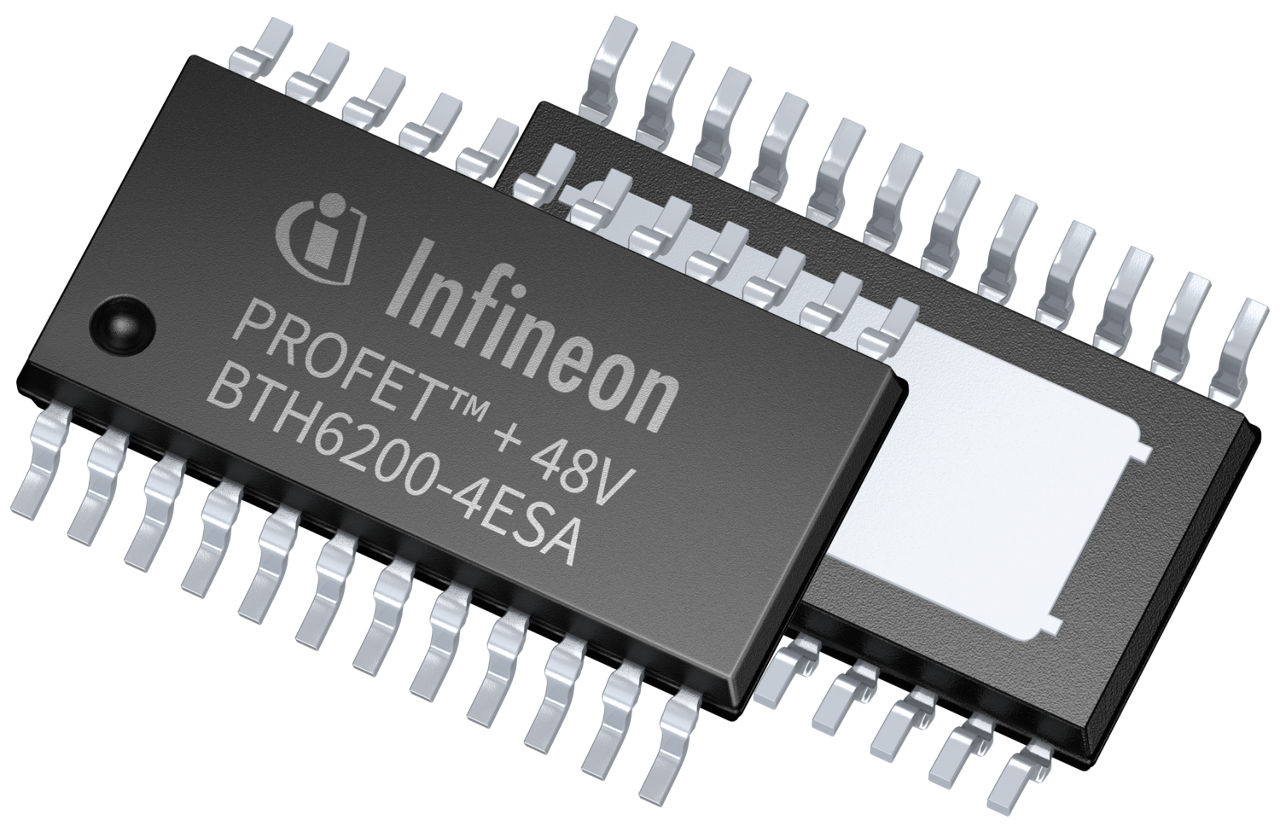

The BTH6200-4ESA, as part of the PROFET™ + 48V family, features 4 channels with proportional analog current sense. This 200 mΩ quad-channel device is suitable for a 48 V board net. It comes in a TSDSO-24 exposed pad package offering protection and diagnostic functions.

Features

  • RDS (on) of 200 mΩ (typical)
  • Up to 60 V operating voltage
  • Quad-channel device
  • Analog current sense
  • 3.3 V and 5 V compatible logic inputs
  • Enhanced energy capability
  • Automotive qualified, AEC-Q100
  • Very low leakage current in OFF state
  • PRO-SIL™ ISO 26262-ready
  • TSDSO-24 package

Benefits

  • Supporting evaluation acc. to ISO 26262
  • Suitable for 48 V systems
  • Providing protection and diagnosis

Applications
