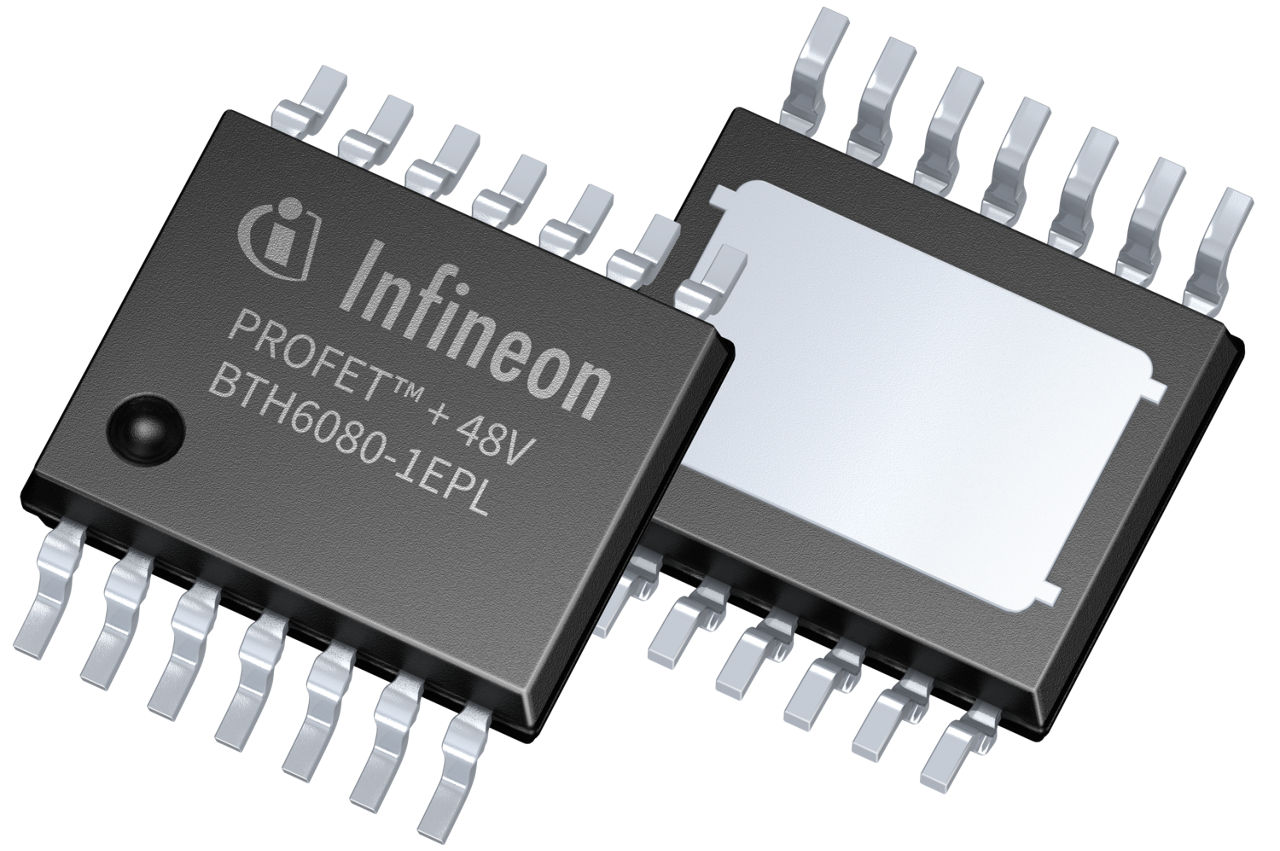

BTH6080-1EPL

NEW
RDS(on) @ Tj = 25°C: 75 mΩ | adjustable current limitation |1 channel| Vs (extended) = 60V | PRO-SIL™ ISO 26262-ready
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTH6080-1EPL
BTH6080-1EPL

Product details

  • Certifications
    ISO 26262-ready
  • Channels
    1
  • Diagnostics
    Current Sense
  • Family
    PROFET™ + 48V
  • IL Nominal Current
    2.5 A
  • Mounting
    SMT
  • Operating Temperature min
    -40 °C
  • Operating Temperature max
    150 °C
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 25°C)
    75 mΩ
  • RDS (on) (@ Tj = 150°C) max
    150 mΩ
  • Recommended Operating Voltage min
    8 V
  • Recommended Operating Voltage max
    60 V
  • toff (Turn OFF time) max
    180 µs
  • ton (Turn ON time) max
    180 µs
OPN
BTH60801EPLXUMA1
Product Status coming soon
Infineon Package
PG-TSDSO-14
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package
PG-TSDSO-14
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The BTH6080-1EPL, as part of the PROFET™ + 48 family, features an adjustable overcurrent limitation for safeguarding sensitive loads and supply line wires from abnormal currents. This 75 mΩ single-channel device is fitted for switching capacitive loads in a 48 V board net. It comes in a small TSDSO-14 package and is pin to pin compatible with BTH6035-1EPL, offering protection and diagnostic functions for itself, attached loads and power net.

Features

  • RDS (on) of 75 mΩ (typical)
  • Up to 60 V operating voltage
  • 1 channel
  • Adjustable current limitation
  • Capacitive load switching capability
  • Self-protection and diagnosis
  • Analog current sense
  • Enhanced energy capability
  • Automotive qualified, AEC-Q100
  • PRO-SIL™ ISO 26262-ready
  • TSDSO-14 package

    Benefits

    • Flexible current limit thresholds
    • Easy adjustment of overcurrent limit
    • Integrated wire protection - without µC
    • Protect load supply line wires
    • Protect sensitive input filters
    • Allows safe switching of capacitors
    • No external pre-charge circuit
    • Prevents overdimensioning of the switch
    • Supporting evaluation acc. to ISO 26262
    • Suitable for 48 V systems
