BSZ0910ND

Infineon’s optimized solution for wireless power and drives
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSZ0910ND
BSZ0910ND
Data Sheet

Product details

  • Budgetary Price €/1k
    0.43
  • ID (@25°C) max
    25 A
  • IDpuls max
    40 A
  • Mounting
    SMD
  • Operating Temperature
    -55 °C to 150 °C
  • Package
    Symmetrical Dual 3x3
  • Polarity
    N
  • Ptot max
    31 W
  • Qgd
    1 nC
  • QG (typ @10V)
    8.2 nC
  • RDS (on) (@4.5V) max
    13 mΩ
  • RthJA max
    65 K/W
  • RthJC max
    4 K/W
  • Rth
    4 K/W
  • VDS max
    30 V
  • VGS(th)
    1.6 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

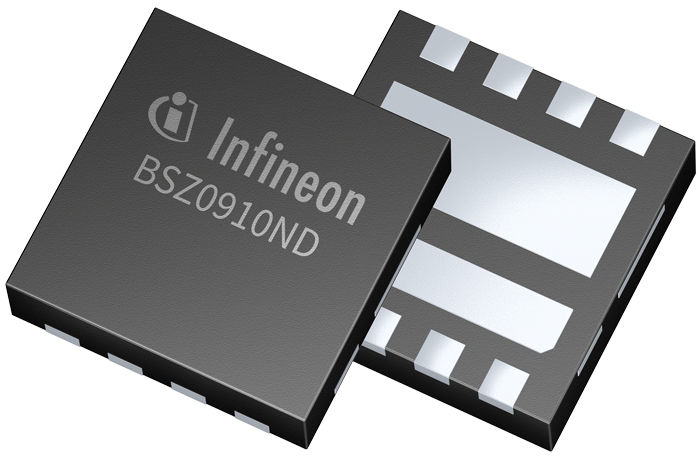

The leading OptiMOS™ technology combined with the PQFN 3.0 x 3.0mm package offers an optimized solution for DC-DC applications with space critical requirements. The BSZ0910ND OptiMOS™ 30V halfbridge fits perfectly in wireless charging and drives (e.g. multicopter) architectures where designers target to simplify the layout and significantly save space without compromising on efficiency.

Features

  • Symmetric half-bridge with very low RDS(on) in a small 3.0 x 3.0mm package outline
  • Exposed pads
  • Logic level (4.5V rated)
  • RoHS compliant 6/6 (full lead free)

Benefits

  • Low switching losses
  • High switching frequency operation
  • Lowest parasitics
  • Low operating temperature
  • Low gate drive losses
  • RoHS 6/6 lead free product
