not for new design
RoHS Compliant
Lead-free

BSO220N03MD G

Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSO220N03MD G
BSO220N03MD G
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.24
  • Ciss
    600 pF
  • Coss
    230 pF
  • ID (@25°C) max
    7.7 A
  • IDpuls max
    54 A
  • Operating Temperature
    -55 °C to 150 °C
  • Package
    SO-8
  • Polarity
    N+N
  • Ptot max
    2 W
  • QG (typ @10V)
    7.8 nC
  • QG (typ @4.5V)
    3.8 nC
  • RDS (on) (@10V) max
    22 mΩ
  • RDS (on) (@4.5V LL) max
    27 mΩ
  • RDS (on) (@4.5V) max
    27 mΩ
  • Rth
    50 K/W
  • VDS max
    30 V
  • VGS(th)
    1.6 V
OPN
BSO220N03MDGXUMA1
Product Status not for new design

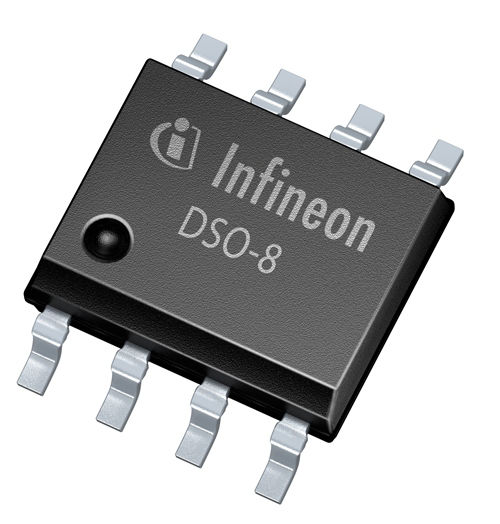

Infineon Package PG-DSO-8
Package Name SO-8
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package PG-DSO-8
Package Name SO-8
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Ultra low gate and output charge, together with lowest on-state resistance in small footprint packages, make OptiMOS™ 25V the best choice for the demanding requirements of voltage regulator solutions in servers, datacom and telecom applications. OptiMOS™ 30V products are tailored to the needs of power management in notebook by improved EMI behavior, as well as increased battery life. Available in halfbridge configuration (power stage 5x6)

Features

  • Ultra low gate and output charge
  • Lowest on-state resistance
  • Easy to design-in

Benefits

  • Increased battery lifetime
  • Improved EMI makes ext snubbers obsolete
  • Saving costs
  • Space saving
  • Reducing power losses
