Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
END OF LIFE
discontinued
RoHS Compliant
Lead-free

BSO130P03S H

END OF LIFE
Infineon’s highly innovative OptiMOS™ families include p-channel power MOSFETs.
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSO130P03S H
BSO130P03S H
Data Sheet

Product details

  • Budgetary Price €/1k
    0.45
  • Ciss
    2650 pF
  • Coss
    708 pF
  • ID (@25°C) max
    11.7 A
  • IDpuls max
    -47 A
  • Operating Temperature max
    150 °C
  • Operating Temperature min
    -55 °C

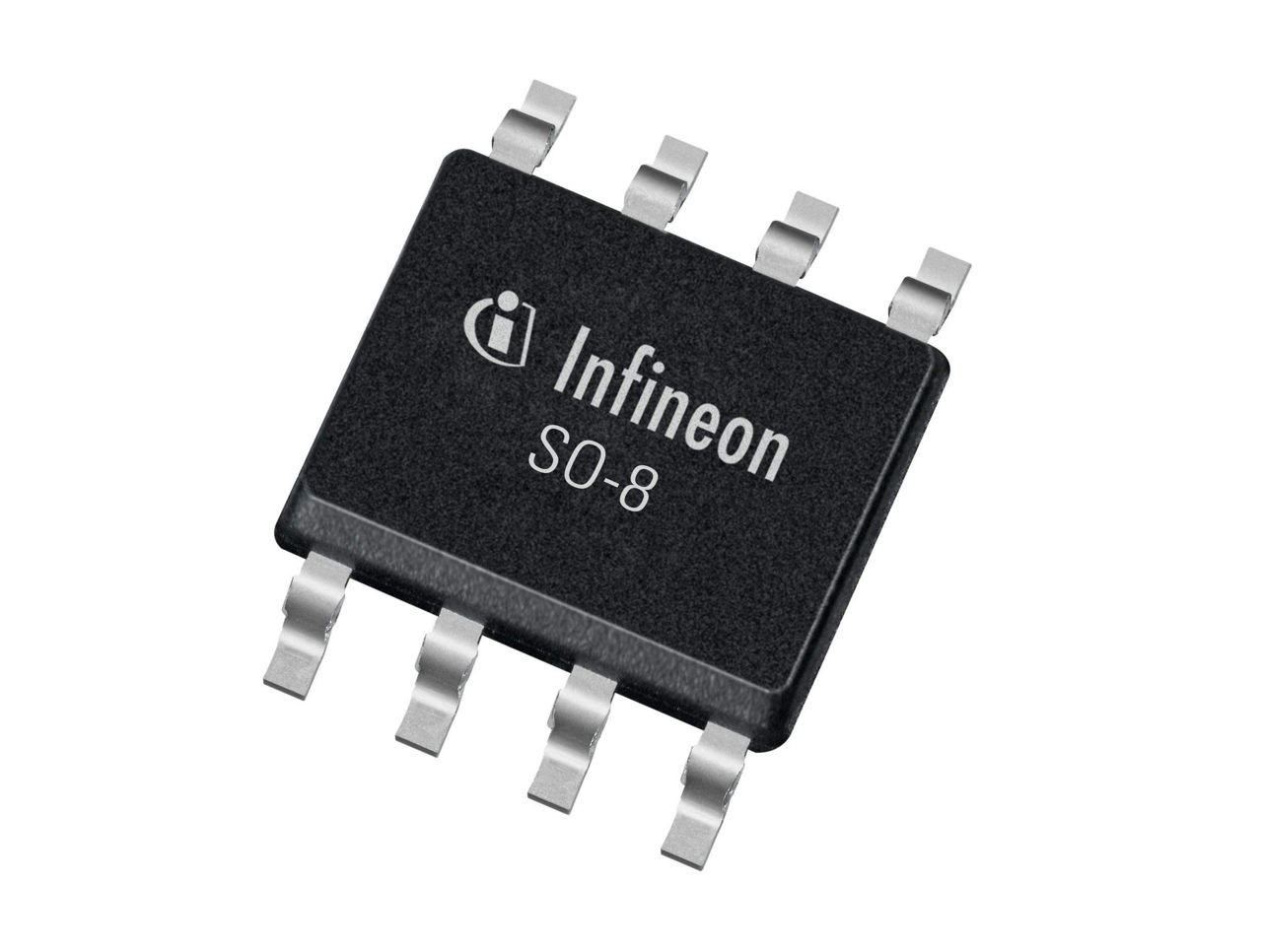

  • Package
    SO-8
  • Polarity
    P
  • Ptot max
    1.56 W
  • QG (typ @10V)
    -61 nC
  • RDS (on) (@10V) max
    13 mΩ
  • Rth
    110 K/W
  • VDS max
    -30 V
  • VGS(th)
    -1.5 V
OPN
BSO130P03SHXUMA1
Product Status discontinued
Infineon Package PG-DSO-8
Package Name SO-8
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package PG-DSO-8
Package Name SO-8
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
Infineon’s highly innovative OptiMOS™ families include p-channel power MOSFETs. These products consistently meet the highest quality and performance demands in key specifications for power system design such as on-state resistance and figure of merit characteristics.

Features

  • Enhancement mode
  • Normal level, logic level or super logic level
  • Avalanche rated
  • Pb-free lead plating
  • RoHS compliant

Applications
