BSL305SPE

END OF LIFE
P-Channel MOSFET 30 V in TSOP-6 package
Data Sheet

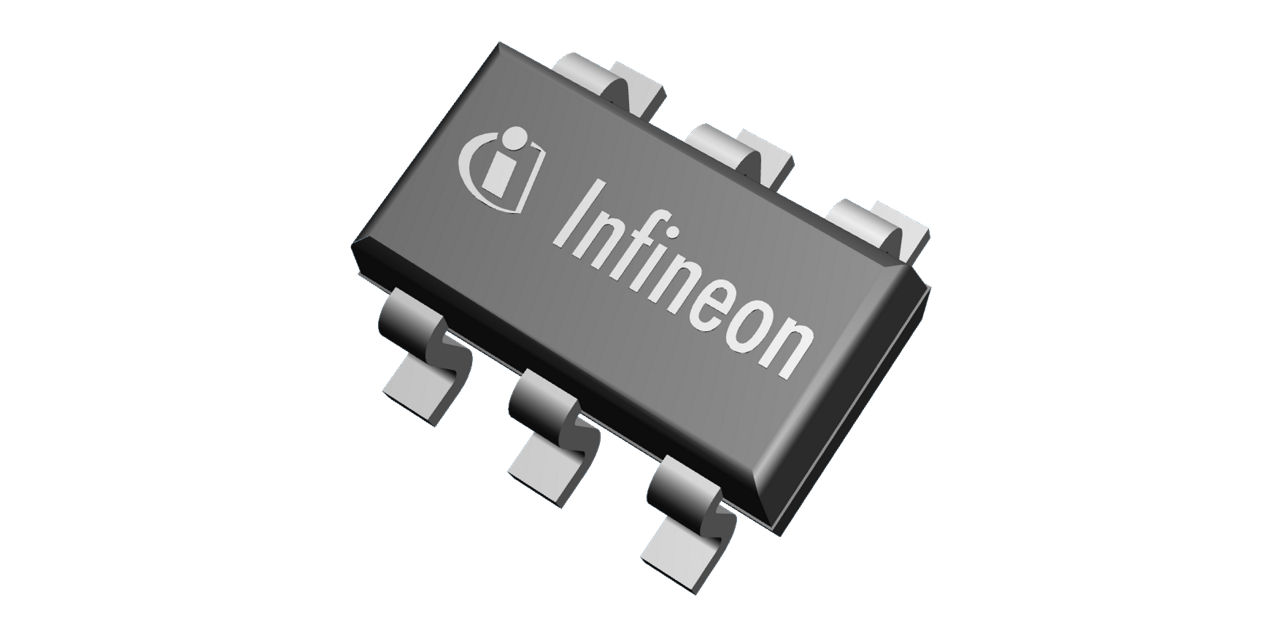

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSL305SPE
BSL305SPE
Data Sheet

Product details

  • Ciss
    706 pF
  • Coss
    338 pF
  • ID max
    -5.3 A
  • IDpuls max
    -21.2 A
  • Mode
    Enhancement
  • Mounting
    SMD
  • Operating Temperature
    -55 °C to 150 °C
  • Package
    TSOP-6
  • Pin Count
    6 Pins
  • Polarity
    P
  • Ptot max
    2 W
  • QG
    -9.4 nC
  • RDS (on) (@4.5V LL) max
    80 mΩ
  • RDS (on) (@4.5V) max
    80 mΩ
  • RDS (on) max
    45 mΩ
  • RthJA max
    230 K/W
  • VDS max
    -30 V
  • VGS(th)
    -2 V to -1 V
OPN
BSL305SPEH6327XTSA1
Product Status discontinued
Infineon Package
N/A
Package Name TSOP-6
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level N/A
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
N/A
Package Name TSOP-6
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Infineon technologies offers automotive and industrial manufacturers a broad portfolio of N and P-Channel Small Signal MOSFETs that meet and exceed the highest quality requirements in well-known industry standard packages. With unmatched levels of reliability and manufacturing capacity these components are ideally suited for a wide variety of applications including LED lighting, ADAS, body control units, SMPS and motor control.

Features

  • Enhancement mode
  • Logic level
  • Avalanche rated
  • Fast switching
  • Dv/dt rated
  • Pb-free lead-plating
  • RoHS compliant, halogen-free
  • Qualified according to automotive standards
  • PPAP capable

Benefits

  • Low RDS(on) provides higher efficiency and extends battery life
  • Small packages save PCB space
  • Best-in-class quality and reliability

Applications
