BSL303SPE

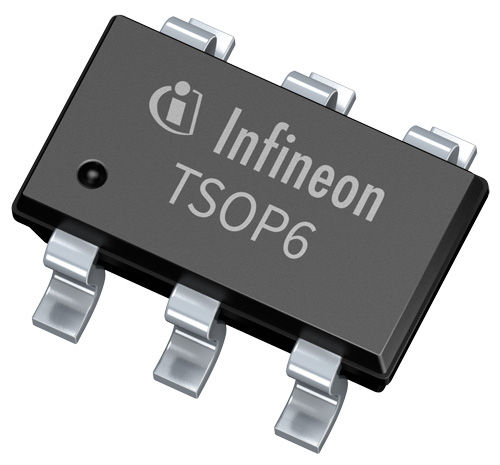

P-Channel MOSFET -30 V in TSOP-6 package
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSL303SPE
BSL303SPE
Data Sheet

Product details

  • Ciss
    1053 pF
  • Coss
    482 pF
  • ID max
    -6.3 A
  • IDpuls max
    -25.2 A
  • Mode
    Enhancement
  • Mounting
    SMD
  • Operating Temperature
    -55 °C to 150 °C
  • Package
    TSOP-6
  • Pin Count
    6 Pins
  • Polarity
    P
  • Ptot max
    2 W
  • QG
    14 nC
  • RDS (on) (@4.5V LL) max
    52 mΩ
  • RDS (on) (@4.5V) max
    52 mΩ
  • RDS (on) max
    33 mΩ
  • RthJA max
    230 K/W
  • VDS max
    -30 V
  • VGS(th)
    -2 V to -1 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
Infineon technologies offers automotive and industrial manufacturers a broad portfolio of N and P-Channel Small Signal MOSFETs that meet and exceed the highest quality requirements in well-known industry standard packages. With unmatched levels of reliability and manufacturing capacity these components are ideally suited for a wide variety of applications including LED lighting, ADAS, body control units, SMPS and motor control.

Features

  • Enhancement mode
  • Logic level
  • Avalanche rated
  • Fast switching
  • Dv/dt rated
  • Pb-free lead-plating
  • RoHS compliant, halogen-free
  • Qualified according to automotive standards
  • PPAP capable

Benefits

  • Low RDS(on) provides higher efficiency and extends battery life
  • Small packages save PCB space
  • Best-in-class quality and reliability

Applications
