BSL214N

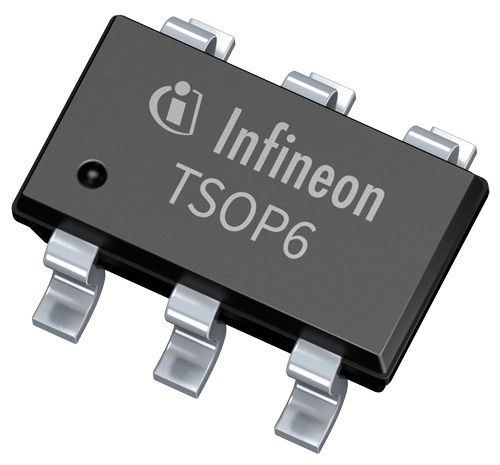

Dual N-Channel Small Signal 20 V MOSFET in TSOP-6 package
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSL214N
BSL214N
Data Sheet

Product details

  • Ciss
    107 pF
  • Coss
    46 pF
  • ID max
    1.5 A
  • IDpuls max
    6 A
  • Mode
    Enhancement
  • Mounting
    SMD
  • Operating Temperature min
    -55 °C
  • Package
    TSOP-6 dual
  • Pin Count
    6 Pins
  • Polarity
    N
  • Ptot max
    0.5 W
  • QG
    0.8 nC
  • RDS (on) (@4.5V LL) max
    140 mΩ
  • RDS (on) max
    250 mΩ
  • RDS (on) (@2.5V) max
    250 mΩ
  • RDS (on) (@4.5V) max
    140 mΩ
  • RthJA max
    250 K/W
  • Special Features
    Super Logic Level
  • VDS max
    20 V
  • VGS(th)
    0.7 V to 1.2 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
Infineon technologies offers automotive and industrial manufacturers a broad portfolio of N and P-Channel Small Signal MOSFETs that meet and exceed the highest quality requirements in well-known industry standard packages. With unmatched levels of reliability and manufacturing capacity these components are ideally suited for a wide variety of applications including LED lighting, ADAS, body control units, SMPS and motor control.

Features

  • Enhancement mode
  • Super logic level
  • Avalanche rated
  • Fast switching
  • Dv/dt rated
  • Pb-free lead-plating
  • RoHS compliant, halogen-free
  • Qualified according to automotive standards
  • PPAP capable

Benefits

  • Low RDS(on) provides higher efficiency and extends battery life
  • Small packages save PCB space
  • Best-in-class quality and reliability

Applications
