BSD816SN

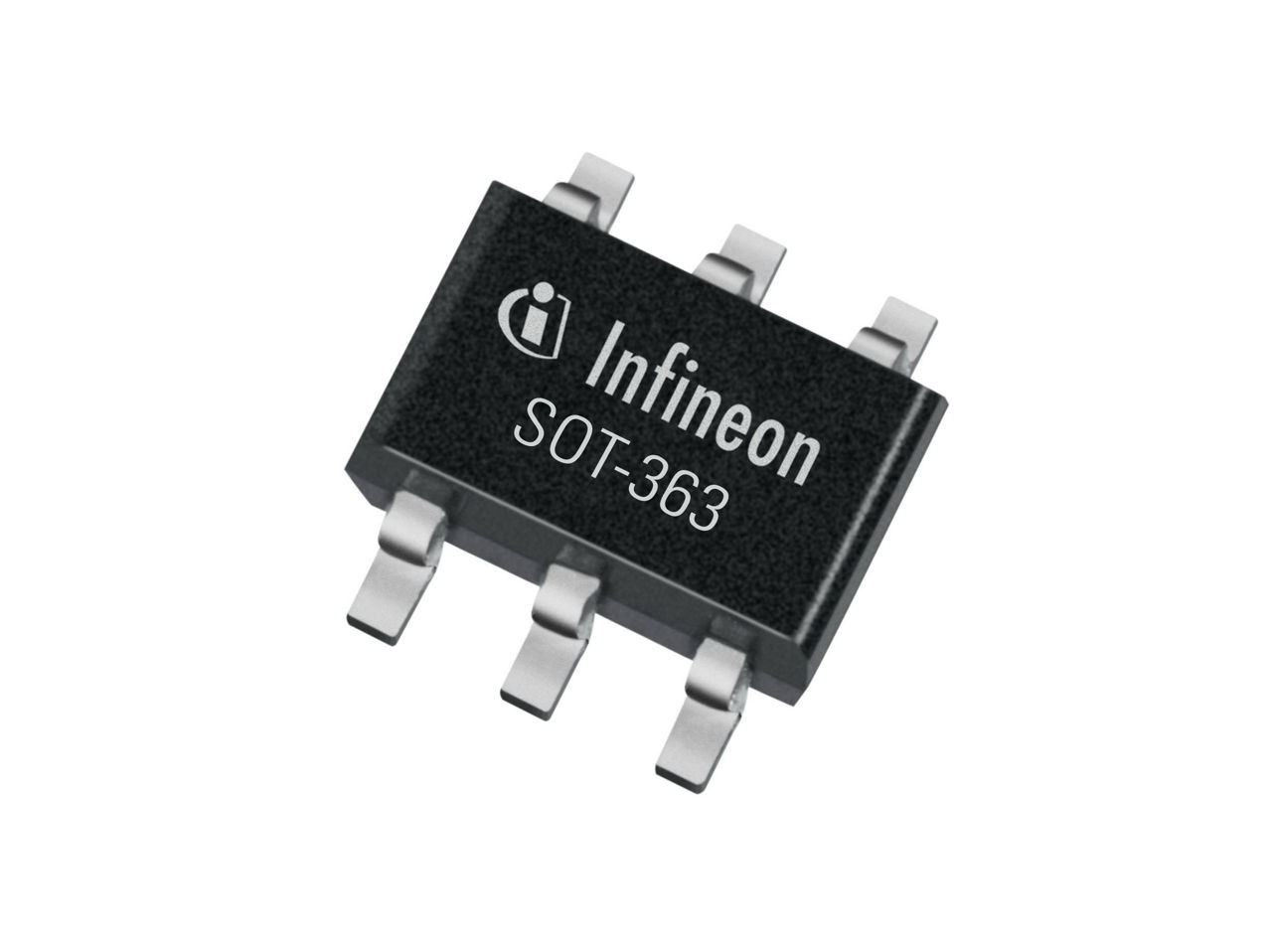

N-Channel Small Signal MOSFET 20 V in SOT363 package
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSD816SN
BSD816SN
Data Sheet

Product details

  • Ciss
    126 pF
  • Coss
    47 pF
  • ID max
    1.4 A
  • IDpuls max
    5.6 A
  • Package
    SOT-363
  • Ptot max
    0.5 W
  • QG
    0.6 nC
  • RDS (on) (@1.8V) max
    240 mΩ
  • RDS (on) (@2.5V) max
    160 mΩ
  • RthJA max
    250 K/W
  • VDS max
    20 V
  • VGS(th)
    0.3 V to 0.95 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
Infineon technologies offers automotive and industrial manufacturers a broad portfolio of N and P-Channel Small Signal MOSFETs that meet and exceed the highest quality requirements in well-known industry standard packages. With unmatched levels of reliability and manufacturing capacity these components are ideally suited for a wide variety of applications including LED lighting, ADAS, body control units, SMPS and motor control.

Features

  • Enhancement mode
  • Ultra logic level
  • Avalanche rated
  • Fast switching
  • Dv/dt rated
  • Pb-free lead-plating
  • RoHS compliant, halogen-free
  • Qualified according to automotive standards
  • PPAP capable

Benefits

  • Low RDS(on) provides higher efficiency and extends battery life
  • Small packages save PCB space
  • Best-in-class quality and reliability
