not for new design
RoHS Compliant

BSC031N06NS3 G

Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSC031N06NS3 G
BSC031N06NS3 G
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.81
  • Ciss
    8000 pF
  • Coss
    1700 pF
  • ID (@25°C) max
    100 A
  • IDpuls max
    400 A
  • Operating Temperature
    -55 °C to 150 °C
  • Package
    SuperSO8 5x6
  • Polarity
    N
  • Ptot max
    139 W
  • QG (typ @10V)
    98 nC
  • RDS (on) (@10V) max
    3.1 mΩ
  • Rth
    0.9 K/W
  • VDS max
    60 V
  • VGS(th)
    3 V
OPN
BSC031N06NS3GATMA1
Product Status not for new design

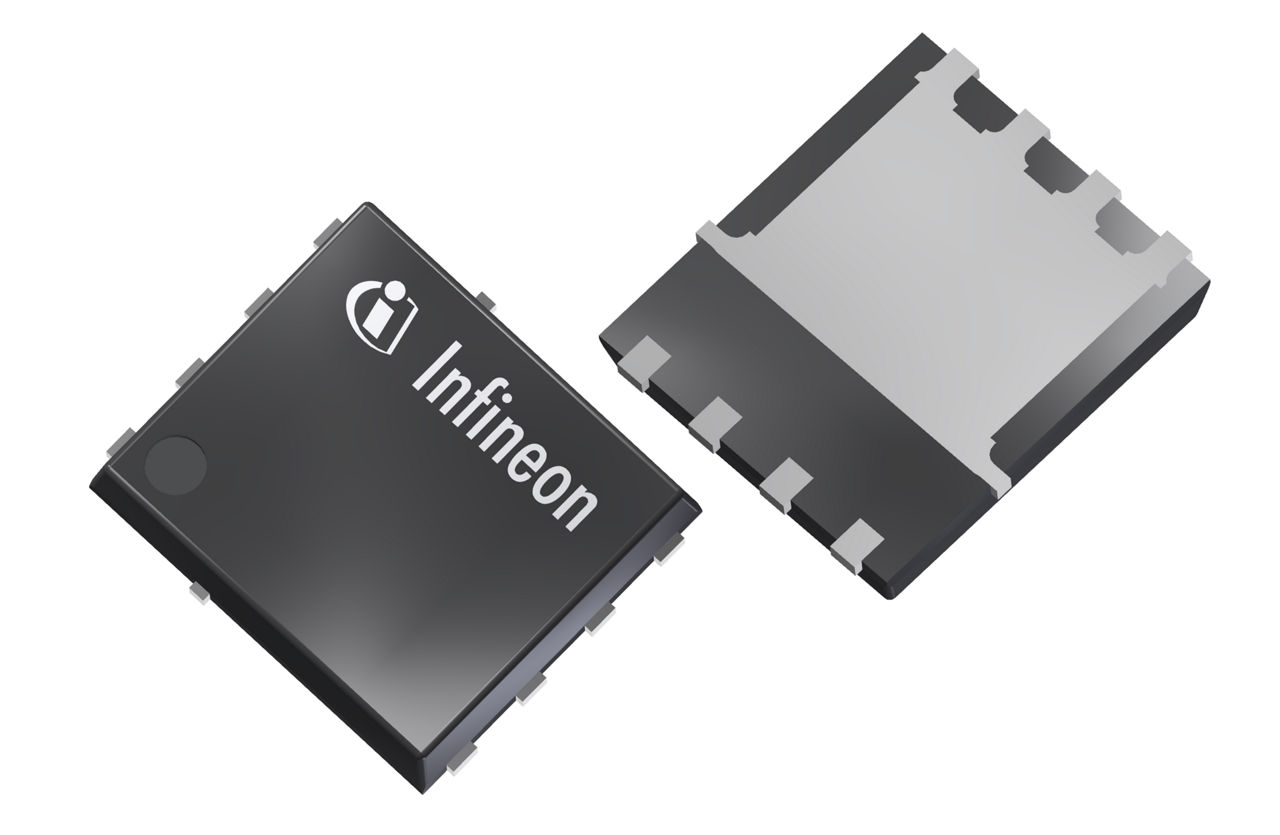

Infineon Package
PG-TDSON-8
Package Name SuperSO8 5x6
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package
PG-TDSON-8
Package Name SuperSO8 5x6
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
OptiMOS™ 60V is a perfect choice for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops and tablet charger. In addition these devices can be used for a broad range of industrial applications including motor control, solar micro inverter and fast switching DC-DC converter.

Features

  • Charge x RDS(on)product (FOM)
  • Low on-resistance R DS(on)
  • Ideal for fast switching applications
  • RoHS compliant - halogen free
  • MSL1 rated

Benefits

  • Highest system efficiency
  • Less paralleling required
  • Increased power density
  • System cost reduction
Very low voltage overshoot

Applications
