Active and preferred
RoHS Compliant
Lead-free

BGSX44MU18

4P4T MIPI 0.4 – 7.125 GHz antenna cross switch
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGSX44MU18
BGSX44MU18
ea.
Data Sheet

Product details

  • Control Interface
    MIPI 2.1
  • Frequency Range
    0.4 – 7.125 GHz
  • Isolation
    43 dB
  • Size
    2.0 x 2.4 mm²
  • Switch Type
    4P4T
Recommended
OPN
BGSX44MU18E6327XUSA1
Product Status active and preferred

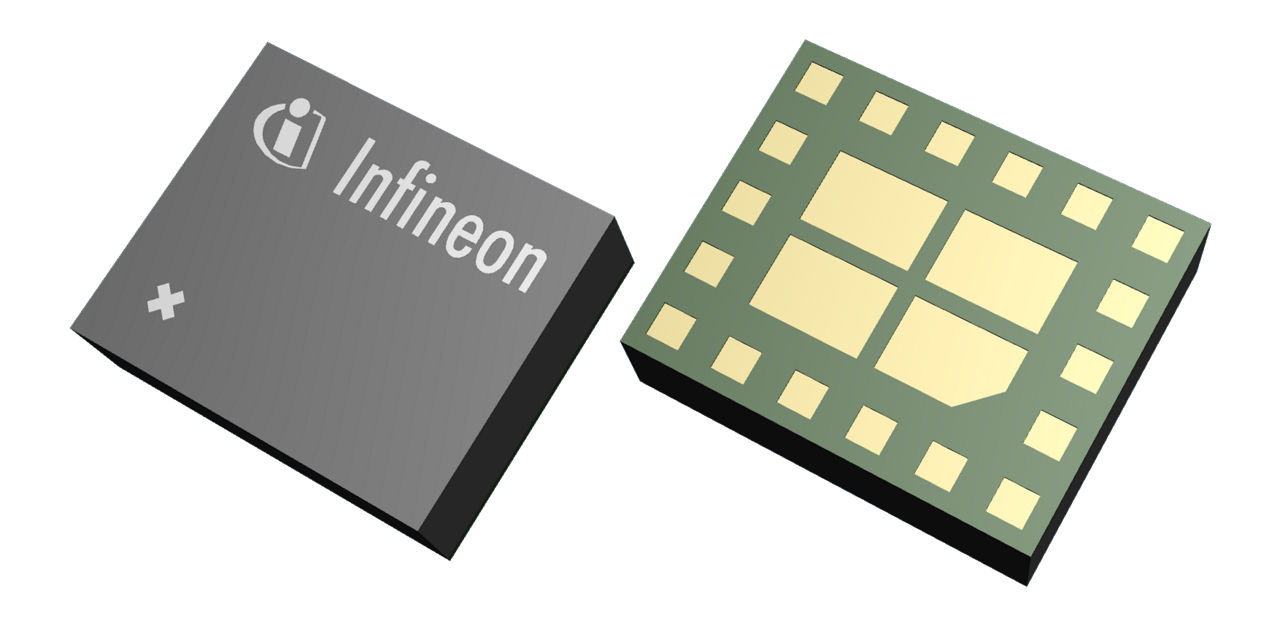

Infineon Package WLGA-18-1
Package Name N/A
Packing Size 4500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package WLGA-18-1
Package Name -
Packing Size 4500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The BGSX44MU18 RF CMOS switch is specifically designed for LTE and 5G FR1 four-antenna applications. This 4P4T cross-switch offers low insertion loss and low harmonic generation.The switch is controlled via a MIPI RFFE control interface. The on-chip controller allows power-supply voltages from 1.65 to1.95 V. The switch features direct-connect-to-battery functionality and DC-free RF ports.Unlike GaAs technology, external DC blocking capacitors at the RF ports are only required if DC voltage is applied externally. The device has a very small size of only 2.0 mm x 2.4 mm and a thickness of 0.63 mm.

Features

  • High linearity up to 37 dBm peak power
  • Fast switching time (max 2 µs) for 5G SRS applications
  • Low insertion loss and high port to port isolation up to 7.125 GHz
  • Low power consumption allows to use MIPI RFFE supply by combining VDD and VIO pins on a voltage range of only 1.65 – 1.95 V
  • MIPI RFFE 2.1 control interface
  • Software and hardware programmable USID
  • Ultra low profile lead-less plastic package (MSL-3, 260 C per IPC/JEDEC J-STD-20)
  • RoHS and WEEE compliant package
