Active and preferred
RoHS Compliant
Lead-free

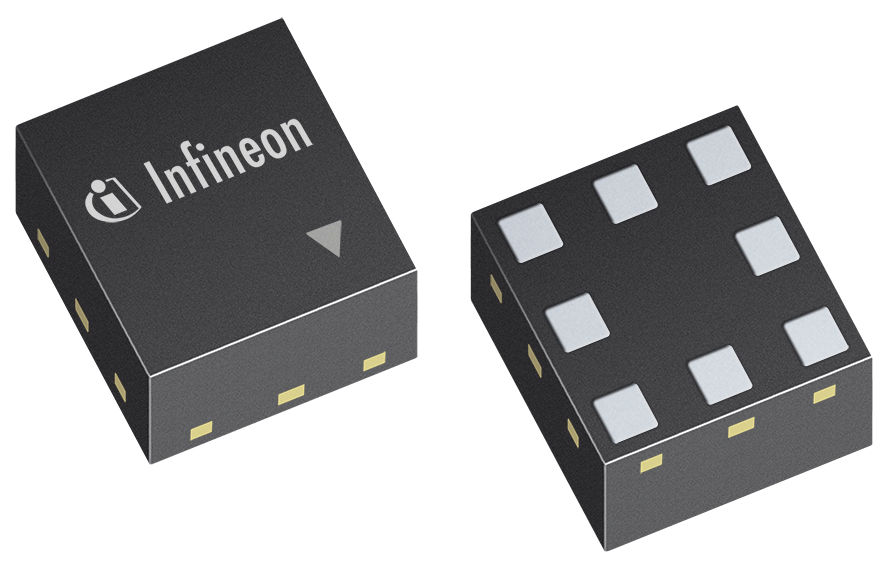

BGS13SN8

Wideband RF SP3T switch
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGS13SN8
BGS13SN8
ea.
Data Sheet

Product details

  • Control Interface
    GPIO
  • Frequency Range
    0.1 - 6.0 GHz
  • Insertion Loss (@1GHz)
    0.21 dB
  • Isolation (@1GHz)
    40 dB
  • Pmax max
    32 dBm
  • Supply Voltage
    1.65 - 3.4 V
  • Switch Type
    SP3T
Recommended
OPN
BGS13SN8E6327XTSA1
Product Status active and preferred
Infineon Package
TSNP-8-1
Package Name N/A
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
TSNP-8-1
Package Name -
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The BGS13SN8 is a single-pole, triple-throw (SP3T) antenna switch for 2.4 GHz WiFi, Bluetooth and cellular applications. It offers low insertion loss and high isolation with low harmonic distortion. BGS13SN8 is manufactured in Infineon’s patented MOS technology, offering the performance of GaAs with the economy and integration of conventional CMOS including the inherent higher ESD robustness.

Features

  • Suitable for WiFi, Bluetooth, and cellular applications
  • Fast switching speed
  • High linearity up to 30 dBm input power
  • Low insertion loss and high port-to-port-isolation
  • Low power consumption
  • General Purpose Input-Output (GPIO) interface
  • On-chip control logic including ESD protection
  • No blocking capacitors required if no DC applied on RF lines
  • 1.1 mm x 1.1 mm and height of 0.375 mm
  • RoHS and WEEE compliant package
