Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
END OF LIFE
discontinued
RoHS Compliant
Lead-free

BGB741L7ESD

END OF LIFE
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGB741L7ESD
BGB741L7ESD
Data Sheet

Product details

OPN
BGB741L7ESDE6327XTSA1
Product Status discontinued
Infineon Package

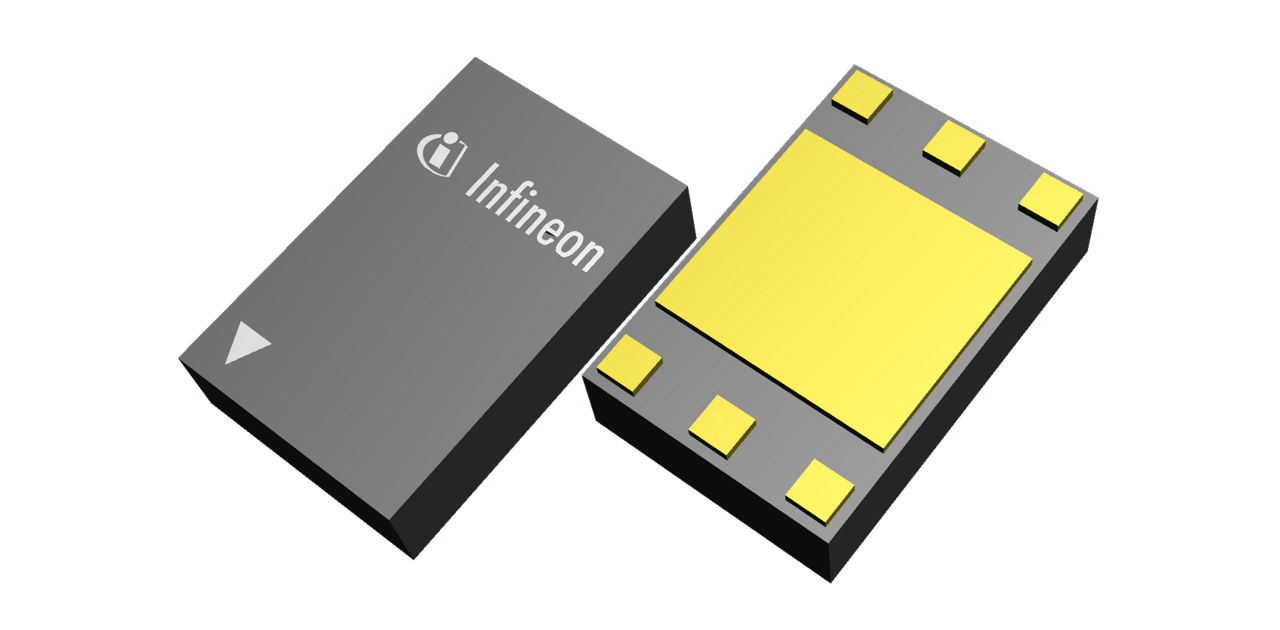

TSLP-7-1
Package Name N/A
Packing Size 7500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
TSLP-7-1
Package Name -
Packing Size 7500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The BGB741L7ESD is a high performance broadband low noise amplifier (LNA) MMIC based on Infineon’s silicon germanium carbon (SiGe:C) bipolar technology.

Features

  • Minimum noise figure NFmin = 1.05 dB at 2.4 GHz, 3 V, 10 mA
  • Supply voltage range VCC = 1.8 to 4.0 V at TA = 25 °C
  • High RF input power robustness of 20 dBm
  • Integrated ESD protection: 2 kV HBM at all pins
