Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
END OF LIFE
discontinued
RoHS Compliant
Lead-free

BCR562

END OF LIFE
Data Sheet

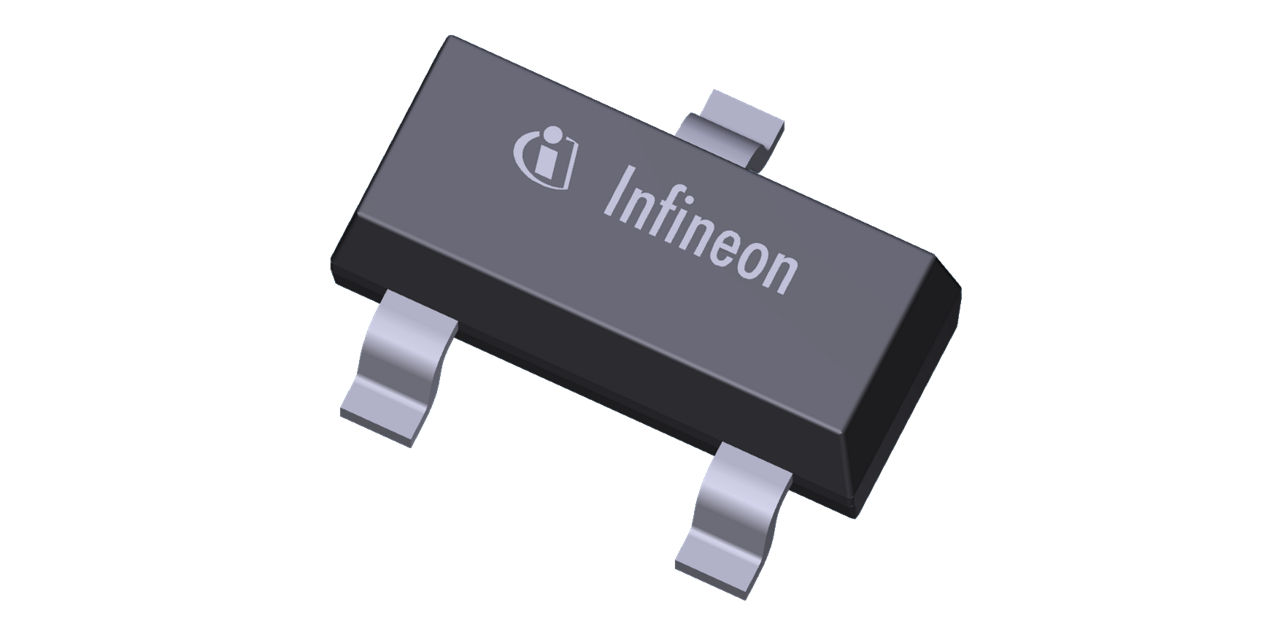

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BCR562
BCR562
Data Sheet

Product details

  • fT
    150 MHz
  • hFE min
    60
  • ICBO max
    100 nA
  • Mounting
    SMT
  • Polarity
    PNP (Single)
  • Ptot max
    330 mW
  • R1 / R2
    1
  • R1
    4.7 kΩ
  • R2
    4.7 kΩ
  • VCBO max
    50 V
  • VCE(sat) max
    0.3 V
  • VCEO max
    50 V
  • VEBO max
    10 V
  • Vi (off) max
    1.5 100µA / 5V
  • Vi (on) max
    1 V
  • Vi (on) min
    1 2mA / 0.3V
OPN
BCR562E6327HTSA1
Product Status discontinued
Infineon Package
SOT23
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
SOT23
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
PNP Silicon Digital Transistor

Features

  • Built in bias resistor (R1= 4.7 kΩ, R2= 4.7 kΩ)
  • Pb-free (RoHS compliant) package
  • Qualified according AEC Q101

Applications
