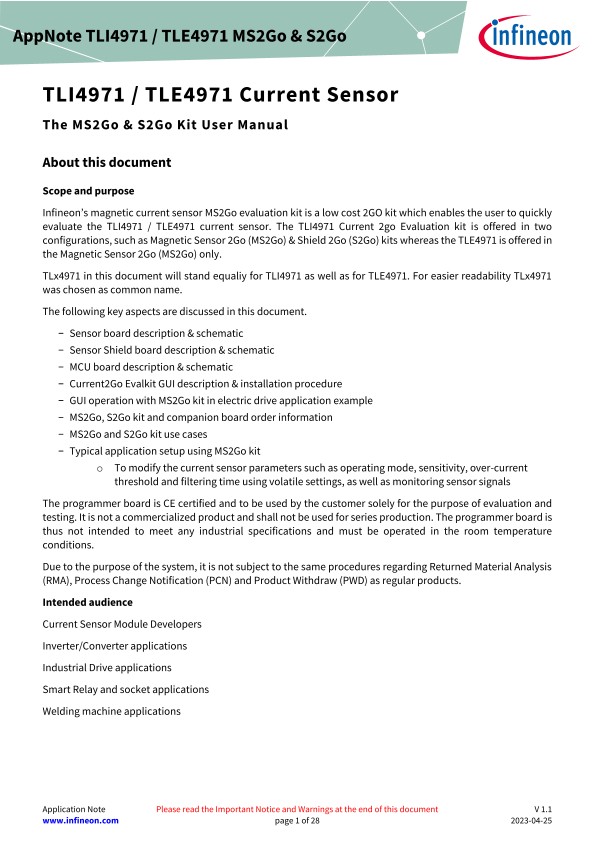

TLx4971 The MS2Go & S2Go Kit User Manual

Infineon’s magnetic current sensor MS2Go evaluation kit is a low cost 2GO kit which enables the user to quickly evaluate the TLI4971 / TLE4971 current sensor. The TLI4971 Current 2go Evaluation kit is offered in two configurations, such as Magnetic Sensor 2Go (MS2Go) & Shield 2Go (S2Go) kits whereas the TLE4971 is offered in the Magnetic Sensor 2Go (MS2Go) only. TLx4971 in this document will stand equaliy for TLI4971 as well as for TLE4971. For easier readability TLx4971 was chosen as common name. The following key aspects are discussed in this document. − Sensor board description & schematic − Sensor Shield board description & schematic − MCU board description & schematic − Current2Go Evalkit GUI description & installation procedure − GUI operation with MS2Go kit in electric drive application example − MS2Go, S2Go kit and companion board order information − MS2Go and S2Go kit use cases − Typical application setup using MS2Go kit o To modify the current sensor parameters such as operating mode, sensitivity, over-current threshold and filtering time using volatile settings, as well as monitoring sensor signals The programmer board is CE certified and to be used by the customer solely for the purpose of evaluation and testing. It is not a commercialized product and shall not be used for series production. The programmer board is thus not intended to meet any industrial specifications and must be operated in the room temperature conditions. Due to the purpose of the system, it is not subject to the same procedures regarding Returned Material Analysis (RMA), Process Change Notification (PCN) and Product Withdraw (PWD) as regular products.

• 1.70 MB
• Jul 19, 2023
