VD_USB_PAG_65W_ADAPTER

65 W USB-C power adapter solution using EZ-PD™ PAG1
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

VD_USB_PAG_65W_ADAPTER
VD_USB_PAG_65W_ADAPTER

Product details

  • Board Type
    Virtual Design
  • Description

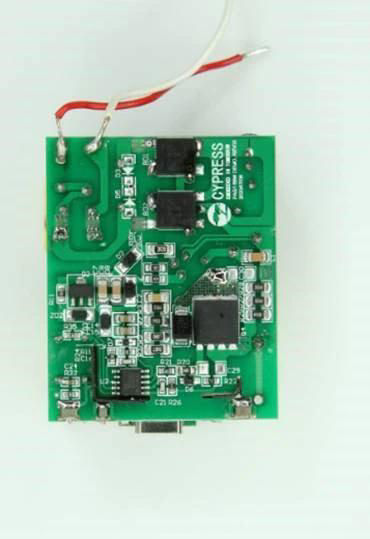

    The 65 W power adapter reference design board is built using EZ-PD™ PAG1S and PAG1P controllers. The solution meets the global efficiency standards including DoE level VI/ CoC tier 2 and passes the conducted emission as per EN 55032 B standard.
  • Family
    Universal Serial Bus (USB) – Power Delivery Controller
  • Input Type
    DC
  • Qualification
    Consumer
  • Target Application
    Infotainment, Communication, Power Supplies
OPN
Product Status paper design
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type N/A
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status paper design
Infineon Package --
Package Name -
Packing Size 0
Packing Type
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
The 65 W power adapter reference design incorporates Infineon’s EZ-PD™ PAG1S and PAG1P controllers, meeting global efficiency standards, including DoE level VI/CoC tier 2. It is tailored for USB-C PD and QC power adapters, supporting legacy charging requirements. The solution offers a low BOM cost and high-performance PD/PPS/QC compliance. The board test report is available for customer reference.

Features

  • Supports USB Type-C and USB PD 3.1
  • Fixed PDO:5V/3A, 9V/3A, 15/3A, 20V/2.25A
  • PPS: 3.3 V-16 V/3A, 3 V-21 V/3.25A
  • Support firmware upgrade
  • Passes CoC tier 2 & DoE VI standards
  • Passes CISPR 32 class B CE standard

Benefits

  • Support firmware upgrade to PD3.2 SPR
  • Low BOM cost
  • Low standby power consumption
  • Programmable power solution
