VD_USB_CCG3_HDMI_ADAPTER

EZ-PD™ CCG3 USB-C to HDMI dongle reference design
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

VD_USB_CCG3_HDMI_ADAPTER
VD_USB_CCG3_HDMI_ADAPTER

Product details

  • Board Type
    Virtual Design
  • Family
    Universal Serial Bus (USB) – Power Delivery Controller
  • Input Type
    DC
  • Qualification
    Consumer
  • Target Application
    Infotainment, Communication, Power Supplies
OPN
Product Status paper design
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type N/A
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status paper design
Infineon Package --
Package Name -
Packing Size 0
Packing Type
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant

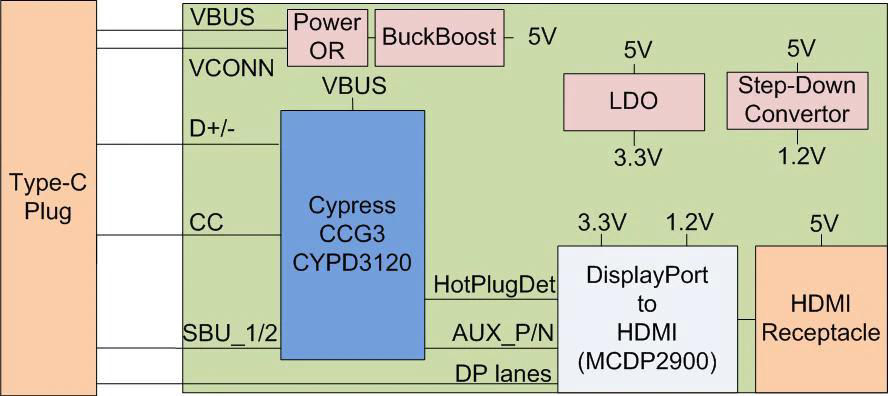

The Type-C to HDMI Adapter allows USB-Type C Notebook users to connect to an HDMI display. It supports Type-C to VGA or DVI. Compliant with VESA DisplayPort Alt Mode on USB Type-C Standard Version 1.0, it integrates USB Power Delivery Type-C transceiver, USB Billboard controller, SBU switch, and terminations on the AUX lines. CCG3 for this solution is available in a 40-QFN package. Assistance is available in the Infineon Developer Community.

Features

  • Supports USB Type-C and USB-PD
  • Integrated USB billboard controller
  • Integrated SBU switch and terminations
  • Supports DP alternate mode
  • DS:1x HDMI

Benefits

  • Reduced design cycle
  • Reduced solution footprint
  • GUI based configuration utility
  • Compliant to USB PD specification
  • Extensive interop tested solution

Applications
