TPM 45 IRIDIUMBOARD

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TPM 45 IRIDIUMBOARD
TPM 45 IRIDIUMBOARD

Product details

  • Board Type
    Evaluation Board
  • Family
    Security
  • Input Type
    DC
  • Interfaces
    I2C
  • Product Name
    Iridium 9645 - TPM1.2 IRIDIUM Evalboard
  • Qualification
    Consumer, Industrial
  • Sub Application
    Embedded Computing, Trusted Computing
  • Supply Voltage
    3.3 V
  • Target Application
    Automation, Lighting, Consumer, Industrial, Medical, Smart Card and Security
OPN
IRIDIUM9645TPMI2CTOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 120
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 120
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

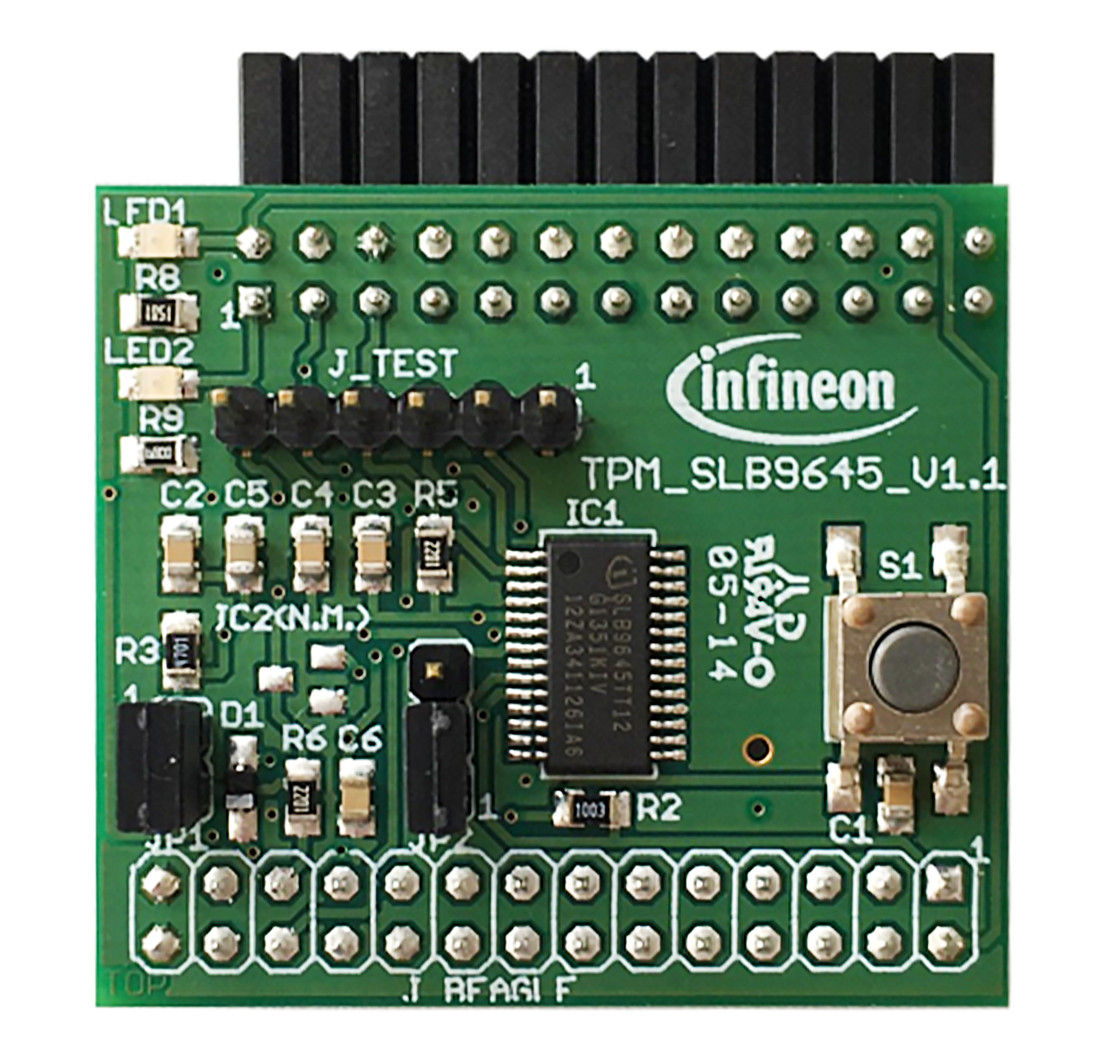

Iridium 9645 – TPM1.2 I2CEvaluation Board for Raspberry Pi and BeagleBoard xMInfineon’s Trusted Platform Module (TPM) SLB 9645 is a fully TCG standard compliant TPM 1.2. It is featuring an I2C interface to facilitate host communication

Features

  • Compliant to TCG (Trusted Computing Group) TPM 1.2 Rev. 116
  • High-end security controller with advanced cryptographic algorithms implemented in hardware
  • Based on Common Criteria (EAL4+) certified code
  • Easy integration thanks to I2C interface
  • Extended temperature range (-40 to +85°C) for a variety of applications
  • 3.3 V or 1.8 V power supply
  • 26-pin Raspberry Pi 1 header, compatible with Raspberry Pi 2 & 3 40-pin header
  • 28-pin BeagleBoard-xM header
  • Reset button
  • Power LED
  • Reset input from evaluation board
  • Test header
  • External reset circuitry (optional)
