Active and preferred

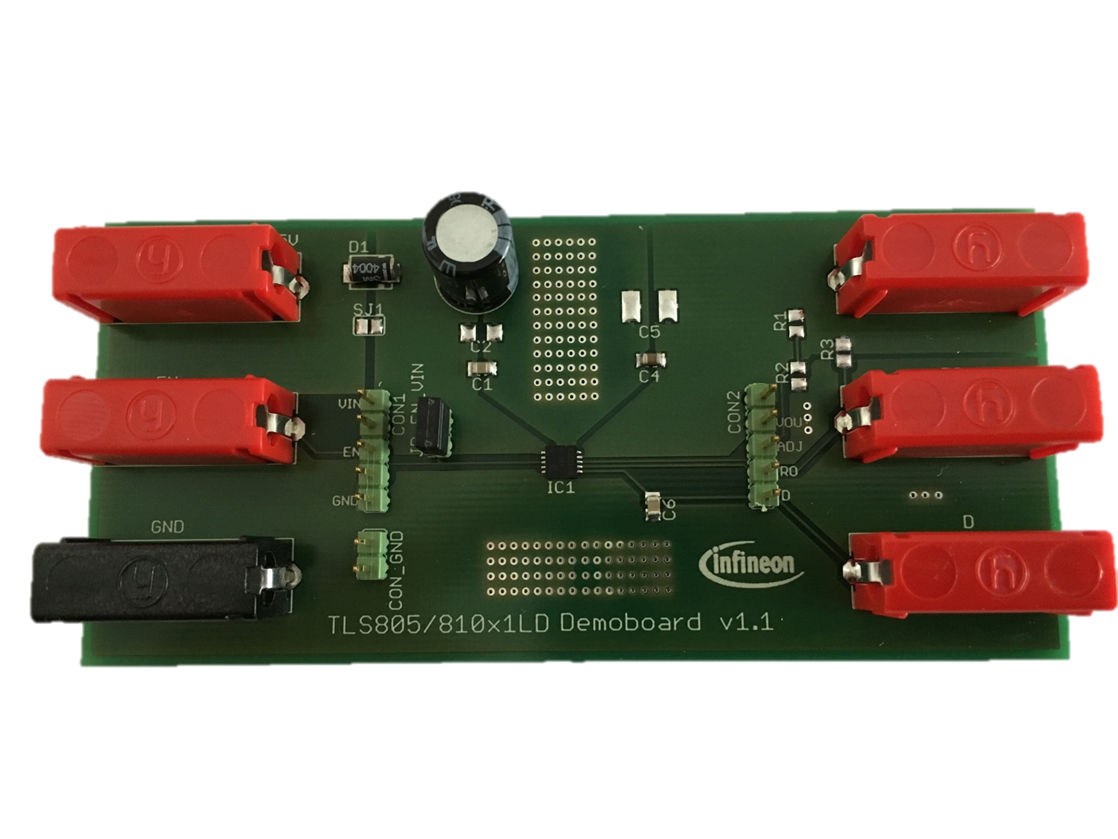

TLS805B1LDV50 BOARD

User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS805B1LDV50 BOARD
TLS805B1LDV50 BOARD
ea.
User Manual

Product details

  • Board Type
    Demo Board
  • Family
    Linear Voltage Regulator (LDO), OPTIREG™ Linear
  • Input Type
    DC
  • Language
    SPICE
  • Output Current
    100 mA
  • Output Voltage
    5 V
  • Product Category
    Evaluation Boards
  • Product Name
    TLS805B1LDV50 BOARD
  • Qualification
    Automotive
  • Sub Application
    Body Control Module, Infotainment Alarm, Dashboard, Immobilizer, Remote Keyless Entry, Lighting
  • Supply Voltage
    13.5 V
  • Target Application
    Automotive
  • Topology
    Linear
Recommended
OPN
TLS805B1LDV50BOARDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLS805B1 V50 is a low quiescent current linear voltage regulator with wide input range. Operating from 2.75 V to 42 V, it's ideal for automotive applications. The TLS805B1LD V50 provides a fixed 5 V output with 2% accuracy and 50 mA capability. It requires a small 1 μF ceramic capacitor for regulation. Internal protections ensure safety. It has an Enable feature and low standby consumption.

Features

  • Ultra low quiescent current of 5.5 μA
  • 2.75-42V wide input range
  • Output current capacity up to 50 mA
  • Off mode current less than 1 μA
  • Low dropout: 100mV @ 50mA.
  • Output current limit protection
  • Enable
  • Available in PG-TSON-10 package
  • Wide temperature range
  • Green Product (RoHS Compliant)
  • AEC Qualified
