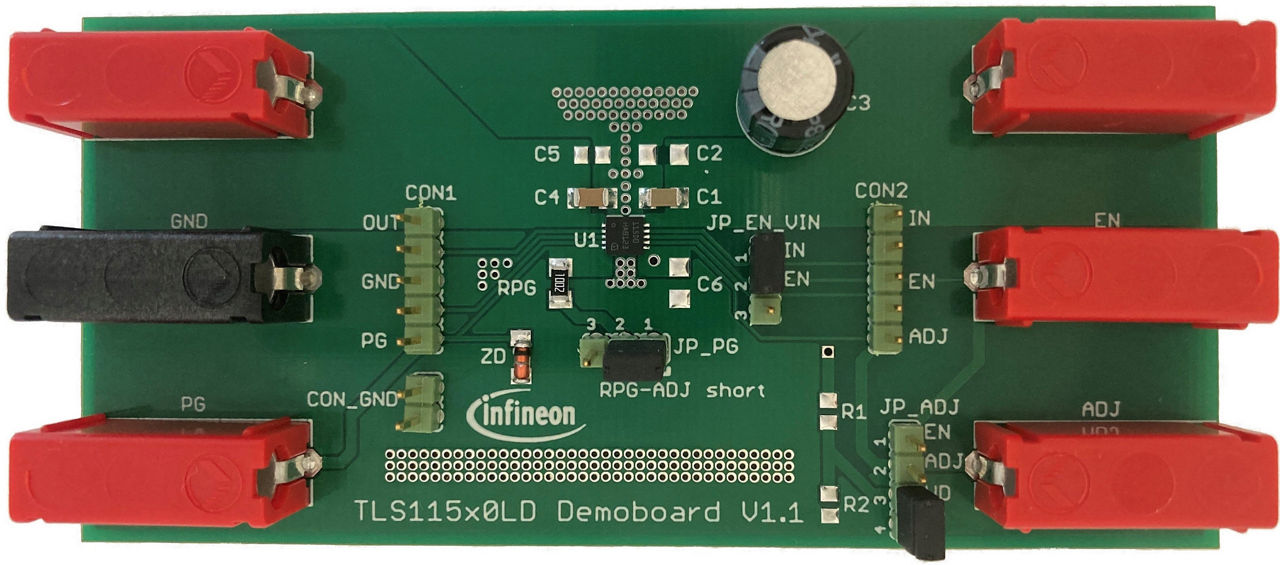

TLS115D0LD DEMOBOARD
TLS115D0LD DEMOBOARD
ea.
User Manual

Product details

  • Board Type
    Demo Board
  • Family
    Linear Voltage Regulator (LDO), OPTIREG™ Linear
  • Input Type
    DC
  • Language
    SPICE
  • Output Current
    150 A
  • Output Voltage
    2 V to 45 V
  • Product Category
    Evaluation Boards
  • Product Name
    TLS115D0LD DEMOBOARD
  • Qualification
    Automotive
  • Sub Application
    TCU, EPS, Sensor Supply, EMS, HVAC
  • Supply Voltage
    13.5 V
  • Target Application
    Automotive
  • Topology
    Linear
Recommended
OPN
TLS115D0LDDEMOBOARDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLS115D0LD is a compact tracking regulator for automotive applications. It supplies off-board systems, protects against reverse polarity and short circuit. Supports up to 45V input voltage. Accurately tracks reference voltage with high precision. Can drive loads up to 150mA, following a 5V reference.

Features

  • 150mA current capacity
  • Tight output tracking TOL to reference
  • Output voltage adjustable down to 2.0 V
  • Stable with ceramic output capacitors
  • Very low dropout voltage
  • Very low current consumption in OFF mode
  • Internally controlled soft start
  • Power Good signal for Over & Under Volt

Benefits

  • Secure power for external sensors.
  • Precision voltage replication
  • Power switch for off-board load

Applications
