TLE997X EVALBOARD

NEW

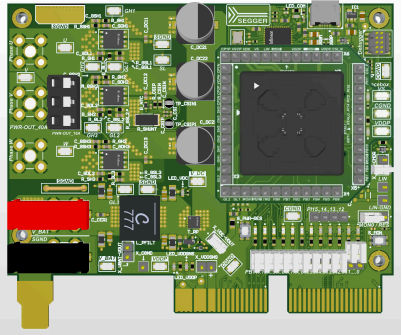

The MOTIX™ TLE997x Evaluation Board is a flexible tool designed to evaluate and test MOTIX™ TLE996x and TLE997x families

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE997X EVALBOARD
TLE997X EVALBOARD

Product details

  • Dimensions
    105mm x 89mm
  • Family
    MOTIX™ 32-bit motor control SoC
  • Input Type
    DC
  • Product Category
    Evaluation Board
  • Qualification
    Automotive
  • Sub Application
    Water pump, electric coolant pump, oil pump, cooling fan, power sliding door, actuator control valve, actuator control valve
  • Supply Voltage range
    5.5 V to 29 V
  • Topology
    B6 Bridge, 3-Phase Motor, 2-Phase Motor
OPN
TLE997XEVALBOARDTOBO1
Product Status coming soon
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status coming soon
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The MOTIX™ TLE997x Evaluation Board is a comprehensive tool for evaluating and testing MOTIX™ TLE996x and TLE997x families. This board provides a flexible environment and is designed to help you get started with your application quickly. For added convenience, the board includes a spring socket for easy device insertion and removal. The respective MOTIX™ TLE996x or TLE997x device must be ordered separately.

Features

  • 3-phase MOSFET bridge
  • Sensorless/sensor-based motor control
  • Socket board for PG-VQFN-48-79 package
  • Interface for analog sensors (ADC)
  • Interface for digital sensors (SPI)
  • Onboard debugging interface
  • Compatible with example software
  • Pin header for all signals

Benefits

  • Fast and easy development
  • Reduced development time
  • Flexible design
