TLE9744_BOARD

NEW

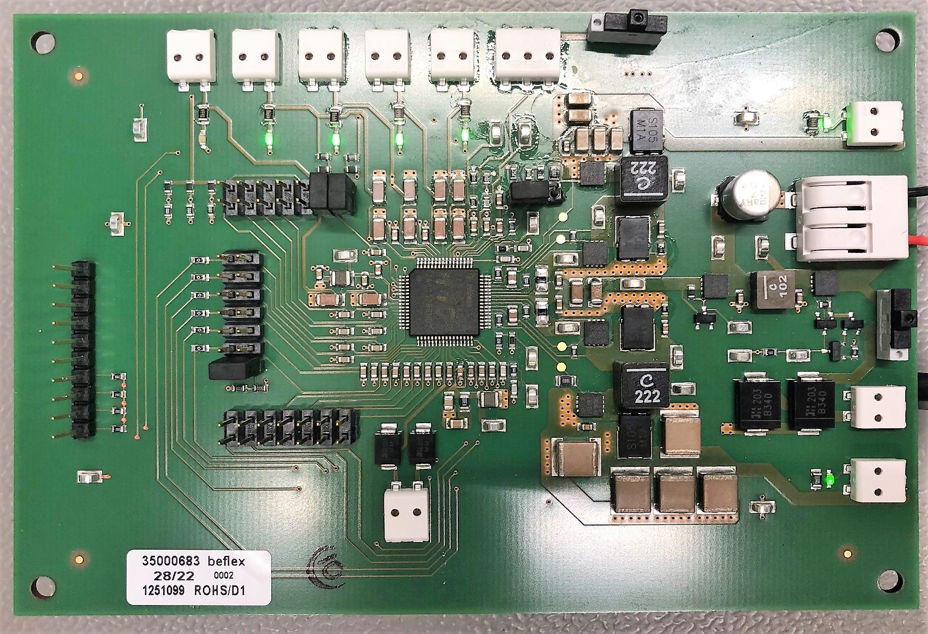

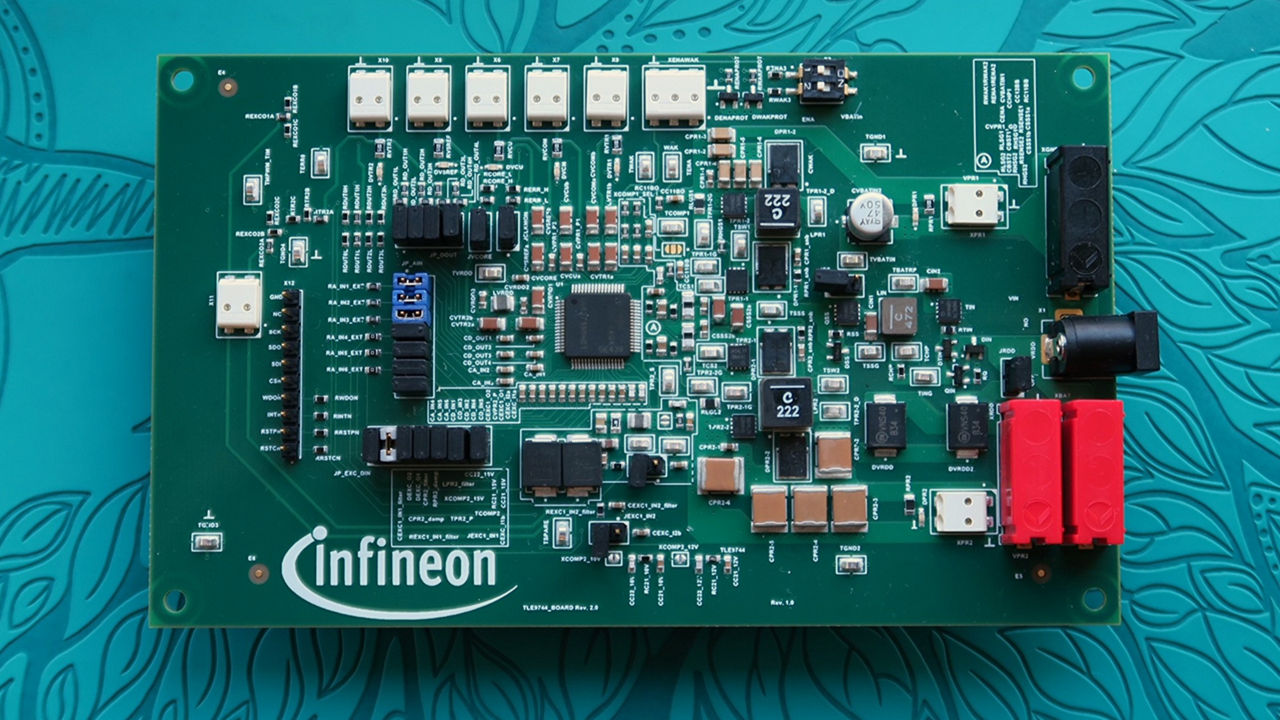

TLE9744QK board for evaluation of XEV PMIC for main inverter

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9744_BOARD
TLE9744_BOARD

Product details

  • Board Type
    Evaluation Board
  • Device
    TLE9744QK
  • Family
    DC-DC Converter, OPTIREG™ PMIC
  • Frequency
    2.2 MHz
  • Input Type
    DC
  • Mounting
    SMD
  • Output Current
    2 A to 2.4 A, 800 mA, 240 mA, 150 mA, 150 mA, 75 mA
  • Qualification
    Automotive
  • Sub Application
    Traction Inverter
  • Supply Voltage
    5.7 V to 36 V
  • Target Application
    Automotive
  • Topology
    DC-DC converter
OPN
TLE9744BOARDTOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
This evaluation board enables you to test performance of the TLE9744QK, an ISO26262 compliant PMIC for traction inverter applications. All power supply rails can be tested for analog performance, as well the digital behavior such as reset and interrupt (RSTCN,RSTPN,WDON and INTN), clock monitoring(CLKMON), resolver excitation and integrated Safety Engine. Usage with TC375 Arduino shield buddy running a GUI(Download: Infineon Development Center).

Features

  • Traction Inverter PMIC TLE9744 on PCB
  • Optimized layout
  • Enable fast oscilloscope measurements
  • Connects to the TC375 shield buddy
  • GUI for evaluation on IDC

Benefits

  • Analog testing of the power rails
  • Test of WWD, FWD, CLKMMON
  • Analyze diff. config. using emulation
  • Check the ISL and stimulate its inputs
  • Evaluate the resolver exciter
  • Understand the state machine
