Active and preferred

TLE92466ED EVALBOARD

TLE92466ED evaluation board provides a quick pick and place solution for costumer’s lab evaluations.
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE92466ED EVALBOARD
TLE92466ED EVALBOARD
User Manual

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    Length: 8.76mm; width: 53.34mm
  • Family
    Constant Current Control IC for Transmission
  • Input Type
    DC
  • Interfaces
    ARDUINO form factor
  • Qualification
    Automotive
  • Supply Voltage max
    40 V
Recommended
OPN
TLE92466EDEVALBOARDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

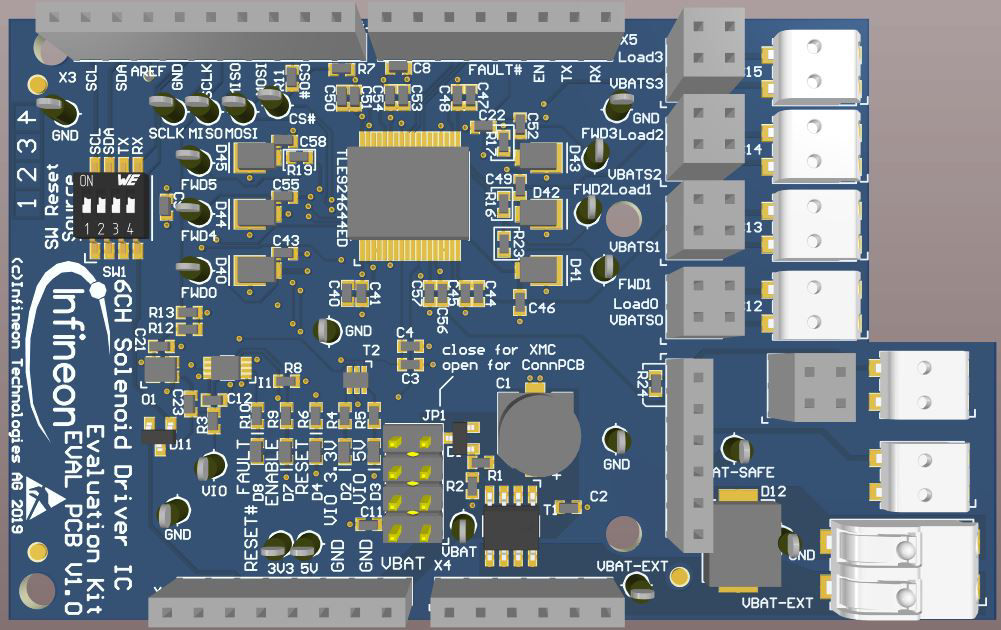

The Evaluation board comes with the Solenoid Driver TLE92466ED and all required external components. The Evaluation PCB is designed on an Arduino Formfactor which makes it controlled by all Arduino compatible microcontroller boards, e.g.: Infineon XMC1100 Boot Kit, Infineon XMC4700 Relax Kit, Aurix ShieldBuddy or Arduino Uno. Please note that the microcontroller board is not included.

Features

  • Six independent low side channels
  • <1% current control accuracy
  • Programmable setpoint from 0mA to 1.5A
  • Load current including dither 1.8A
  • Current in parallel channel mode 2.7A
  • Integrated dither generator
  • Integrated sense resistor RSHUNT = 140mΩ
  • Excellent immunity to large load supply
  • Operation down to 3.5 V at VDD pin
  • 32 bit SPI with 8 bit CRC & SPI watchdog
  • Sophisticated protection and diagnostic

Benefits

  • Enables ASIL D on system level
  • Stable accuracy ±1% from -40°C to 150°C
  • Optimal control achieves
  • Excellent Battery Ripple Rejection
  • Intuitive family concept,4CH TLE92464ED.
  • Utilize TLE92464ED framework
  • Scalable solution
  • Integrated Power Devices
  • Optimize component placement
  • Implement current limit, slew rate
  • Improved Short-to-Battery performance

Applications
