TLE92108-23QX EVALKIT

TLE92108-23QX Evaluation Kit to measure and evaluate the MOTIX™ multi MOSFET gate driver ICs TLE92108-231QX/TLE92108-232QX

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE92108-23QX EVALKIT
TLE92108-23QX EVALKIT

Product details

  • Board Type
    Evaluation Board
  • Family
    Multi MOSFET Driver
Recommended
OPN
TLE9210823QXEVALKITTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

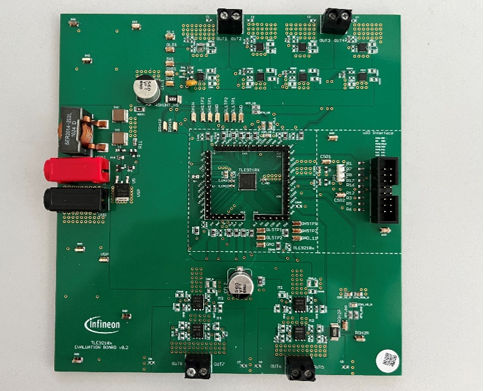

TLE92108-23QX EVALKIT offers an easy method to measure and evaluate the MOTIX™ TLE92108 multi MOSFET gate driver ICs. The graphic user interface allows many possibilities to configure the device for control and diagnostic.The main board is loaded with TLE92108-232QX , includes 8 half-bridge MOSFETs and an active reverse polarity protection MOSFET. Connect the uIO stick and get started using the MOTIX™ Multi MOSFET Driver IC Configuration Wizard.

Features

  • TLE92108-232QX multi MOSFET driver
  • OptiMOS™ 5 40 V MOSFETs in S308 package
  • Control up to 5 DC motors independently
  • Motors controlled over SPI
  • On-board reverse-polarity protection

Applications
