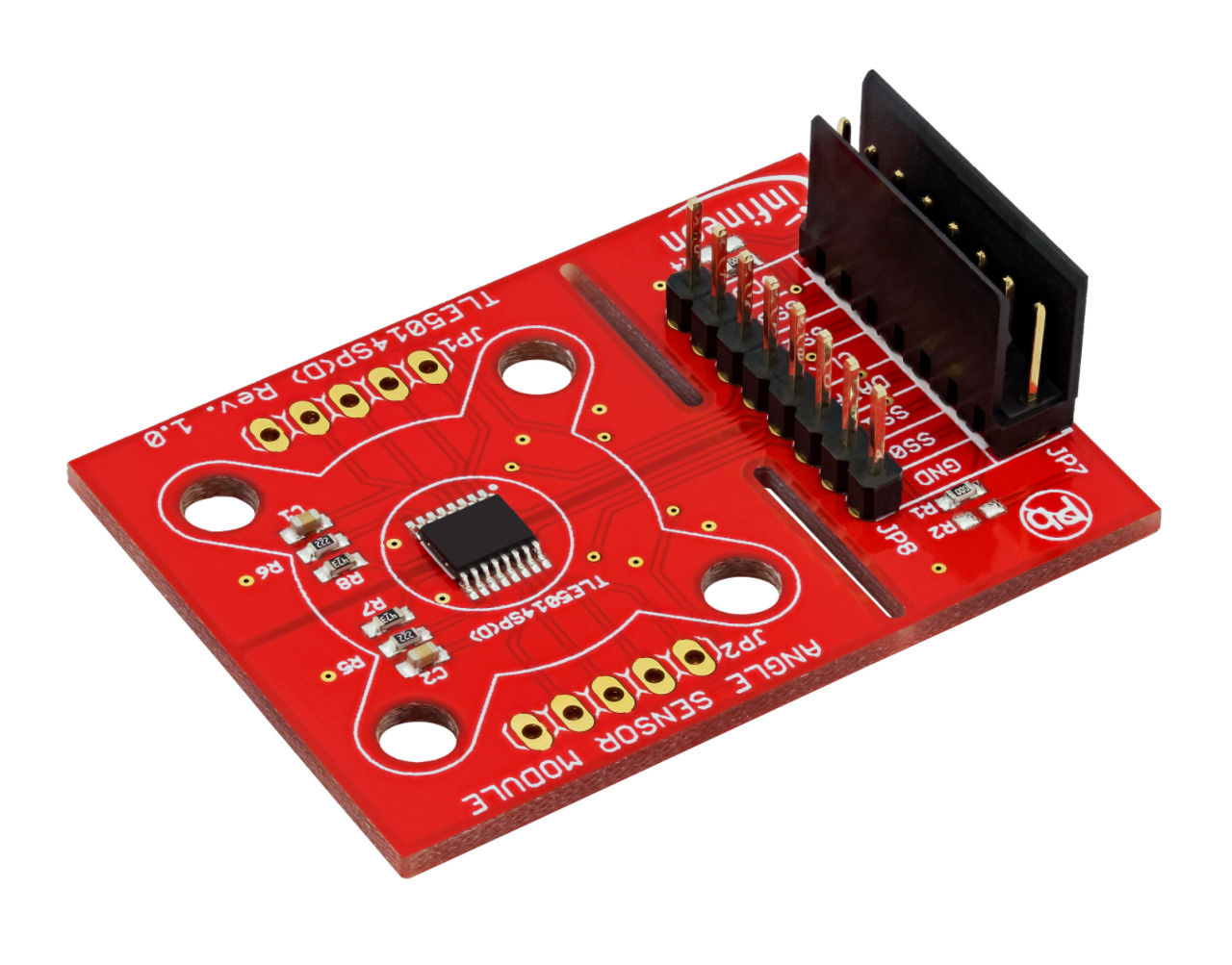

TLE5014SP BOARD

XENSIV™ - TLE5014SP stand alone satellite board features the SPI interface of the digital GMR angle sensor
User Manual
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE5014SP BOARD
TLE5014SP BOARD
User Manual

Product details

  • Applications
    Automotive, Industrial, Consumer
  • Family
    Angle Sensor
Recommended
OPN
TLE5014SPBOARDTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Infineon provides two standalone satellite boards for the TLE5014 angle sensor: the TLE5014CPS satellite board with SENT, SPC, and PWM interfaces, and the TLE5014SP satellite board featuring the SPI interface. Customers can choose between these boards or opt for the full TLE5014 Evalkit, which includes the programmer board and either the TLE5014CPS or TLE5014SP satellite board based on their interface needs.
