TLD816KAURXCB_EVAL
TLD816KAURXCB_EVAL
Data Sheet

Product details

  • Board Type
    Evaluation Board
  • Description

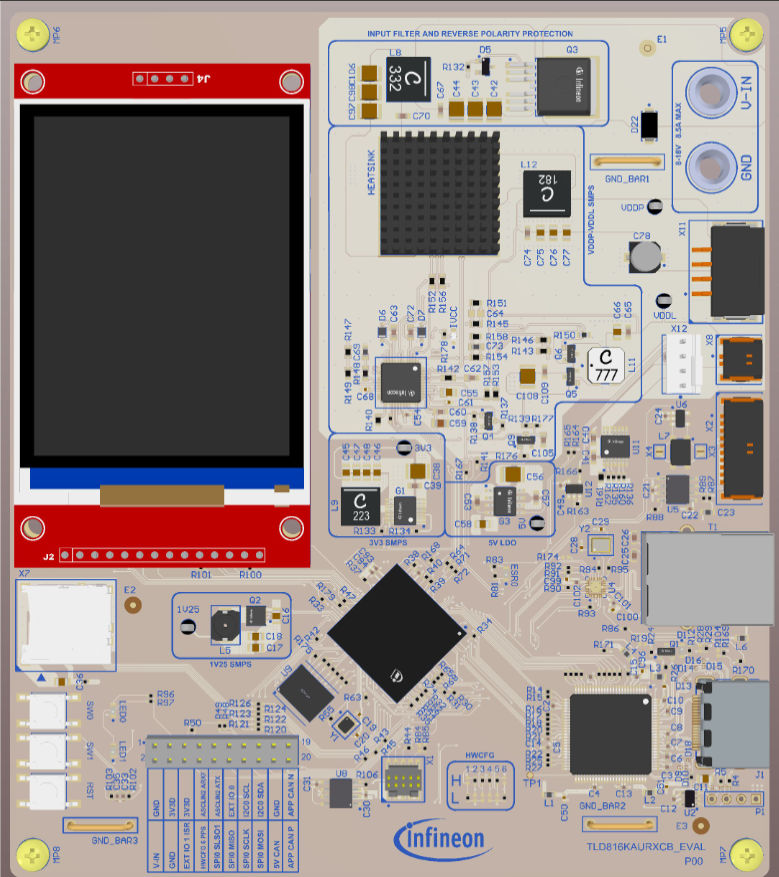

    The core of this board is an automotive-grade Infineon AURIX™ SAK-TC377TX-96F300S AB that belongs to the TC37xTX family. The board is also equipped with TLD5501-2QV DC-DC converter to supply the power and logic stages of the light source.
  • Family
    AURIX™ TC3xx, LITIX™ Power Flex, NOR Semper flash
  • Frequency
    200 kHz
  • Input Type
    DC
  • Output Current
    0 A to 12 A
  • Output Voltage
    0 V to 5.1 V
  • Pout
    0 W to 60 W
  • Supply Voltage
    8 V to 18 V
  • Target Application
    Automotive
  • Topology
    Buck - synchronous
Recommended
OPN
TLD816KAURXCBEVALTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The TLD816KAURXCB_EVAL is designed to control and supply an HD pixel light source for front light applications. The board can be used for high-definition ADB, ADAS-related information projection or message display for automotive headlights.
The TLD816KAURXCB_EVAL is fully compatible with the NMAWA16KAT pixellated lightsource, for further information please visit:

Features

  • high-power controlled DC-DC (VDDP)
  • Color touch-screen display
  • HDMI input to project inputs to lightsource
  • Micro SD slot
  • Embedded web server for diagnostics
  • 1x I²C input, 1x CAN-FD input, 1x SPI input, 1x LIN input
  • Direct interface with NMAWA16KAT load board

Benefits

  • HD pixel application fast learning cycle
  • Software code example ready
  • Allows the lightsource test with no development effort

Applications
