TLD6098-2DPVB2G_EVAL

Power dual phase boost-to-ground
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLD6098-2DPVB2G_EVAL
TLD6098-2DPVB2G_EVAL
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Configuration
    Dual Phase Boost to Ground
  • Description

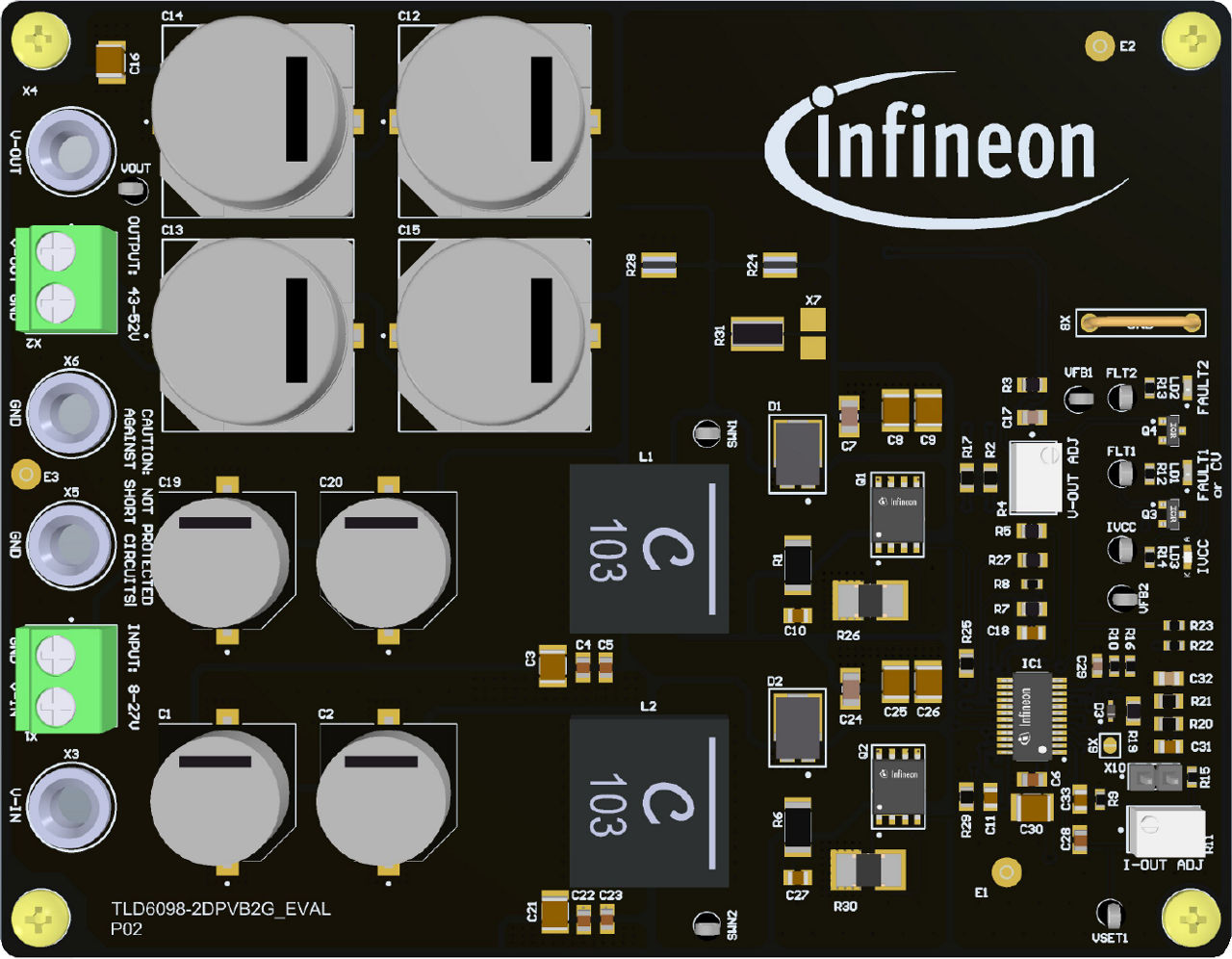

    The TLD6098-2DPVB2G_EVAL dual phase boost-to-ground evaluation board is a switching power supply that, under nominal conditions, can deliver a constant voltage at the output between 43 V and 52 V and a current up to 7 A. This power-supply can be set in constant voltage and in constant current.
  • Family
    LITIX™ Power
  • Frequency
    200 kHz
  • Input Type
    DC
  • Output Current
    0 A to 7 A
  • Output Voltage
    43 V to 52 V
  • Pout
    0 W to 364 W
  • Qualification
    Automotive
  • Supply Voltage
    8 V to 27 V
  • Target Application
    Automotive
  • Topology
    Boost
Recommended
OPN
TLD60982DPVB2GEVALTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLD6098-2DPVB2G_EVAL dual phase boost-to-ground evaluation board is a switching power supply that, under nominal conditions, can deliver a constant voltage at the output between 43 V and 52 V and a current up to 7 A.

Features

  • O/P current 7 A continuous (10 A peak)
  • Operable in constant current mode
  • efficiency performances higher than 94%
  • Output overvoltage protection
  • Low input and output current ripple

Benefits

  • Reduced Ripple with Dual-Phase Design
  • Fully compatible cost-effective solution

Applications
