TLD6098-1SEPIC_EVAL

SEPIC LED driver
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLD6098-1SEPIC_EVAL
TLD6098-1SEPIC_EVAL
User Manual

Product details

  • Board Type
    Evaluation Board, Demo Board
  • Family
    LITIX™ Power
  • Frequency
    100 kHz to 500 kHz
  • Input Type
    DC
  • Output Current max
    1 A
  • Output Voltage max
    50 V
  • Pout
    0 W to 25 W
  • Qualification
    Automotive
  • Sub Application
    Lighting
  • Supply Voltage
    8 V to 27 V
  • Target Application
    Automotive
  • Topology
    DC-DC converter
Recommended
OPN
TLD60981SEPICEVALTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

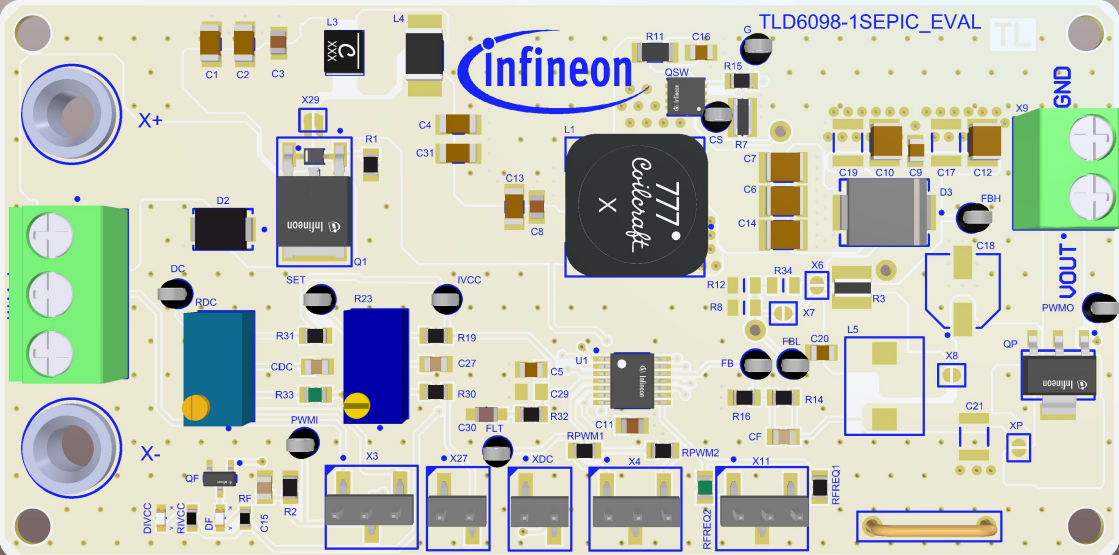

TLD6098-1SEPIC_EVAL is a PCB board designed to supply high power LED with TLD6098-1EP in SEPIC topology. The board can deliver up to 25 W.
