TLD5191IVREG_EVAL
Active and preferred
RoHS Compliant

TLD5191IVREG_EVAL

TLD5191IVREG_EVAL - Evaluation platform for TLD5191ES synchronous MOSFET H-Bridge DC-DC controller.
User manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLD5191IVREG_EVAL
TLD5191IVREG_EVAL
ea.
User manual


Product details

  • Board Type
    Evaluation Board
  • Family
    LITIX™ Power
  • Input Type
    DC
  • Output Current max
    6 A
  • Output Voltage range
    5 V to 47 V
  • Qualification
    Automotive
  • Sub Application
    - Constant current (LED) and constant voltage regulation - High power, high efficiency buck-boost architecture - Embedded PWM engine for digital dimming - EMC optimized device: Spread spectrum, - Constant current (LED) and constant voltage regulation - High power, high efficiency buck-boost architecture - Embedded PWM engine for digital dimming - EMC optimized device: Spread spectrum
  • Supply Voltage range
    6 V to 35 V
  • Target Application
    Automotive
  • Topology
    DC-DC converter

Recommended
OPN
TLD5191IVREGEVALTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Country of Assembly (CoA)
SI
Country of Diffusion (CoD)
SI
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Country of Assembly (CoA)
SI
Country of Diffusion (CoD)
SI
ea.
in stock

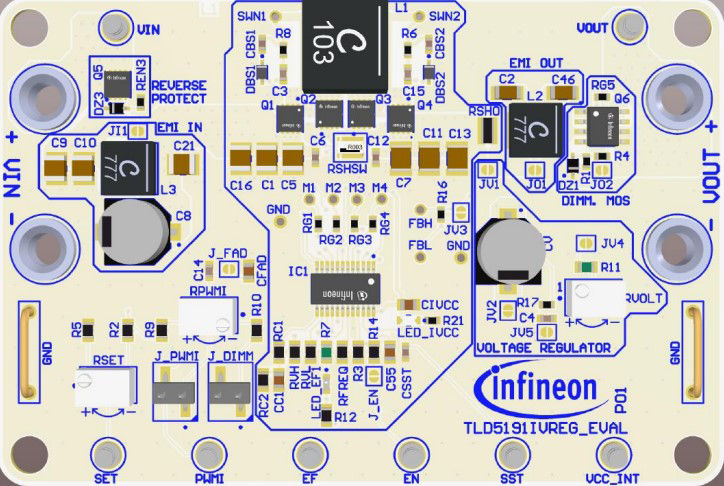

The TLD5191IVREG-EVAL is an evaluation platform for the TLD5191ES, which can work as buck-boost LED driver, or as a voltage regulator.The default configuration is constant current LED driver with 1.5 A maximum output current. The output current can be increased up to 6A or more by changing a shunt resistor.
