Active and preferred

TLD5099EP_SEPIC EVALK

User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLD5099EP_SEPIC EVALK
TLD5099EP_SEPIC EVALK
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    LITIX™ Power
  • Input Type
    DC
  • Output Voltage
    6 V to 23 V
  • Pout max
    23 W
  • Qualification
    Automotive
  • Sub Application
    Daytime runnning light, High beam, Low Beam, Full headlamp
  • Supply Voltage
    8 V to 27 V
  • Target Application
    Lighting, Automotive
  • Topology
    Buck, Boost
Recommended
OPN
TLD5099EPSEPICEVALKTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

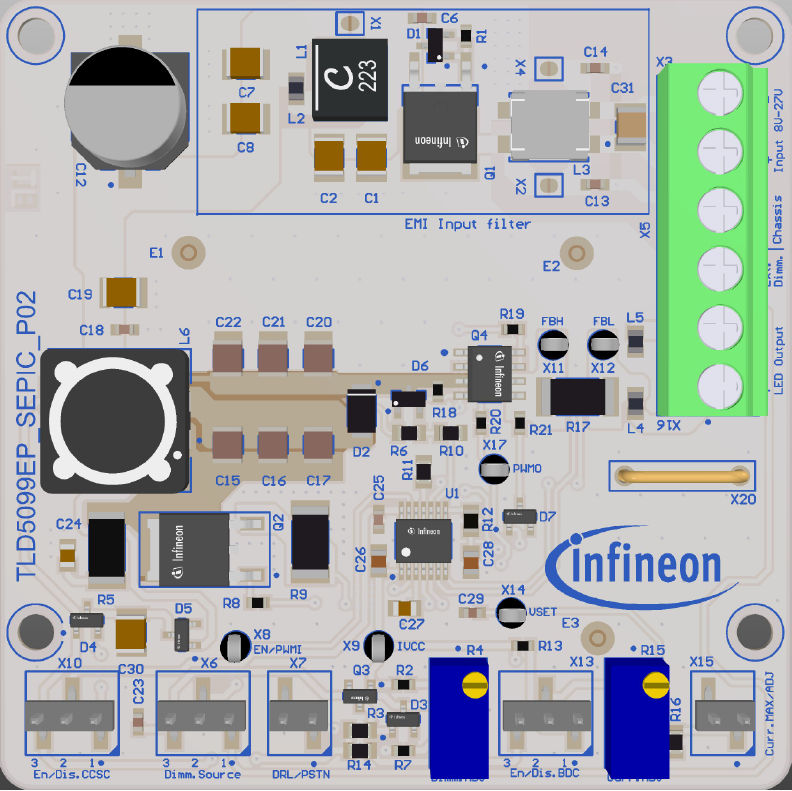

TLD5099EP_SEPIC is an evaluation board in boost to battery topology designed as LED driver. It can deliver up to 23 W with efficiency above 84%. The board is also equipped with the following features, enabled by jumpers:Output current adjustment trimmerPower Derating CircuitryEmbedded PWM EngineCold Crank Survival Circuit (CCSC)
