TLD5099EP_B2G EVALKIT
Active and preferred

TLD5099EP_B2G EVALKIT

User manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLD5099EP_B2G EVALKIT
TLD5099EP_B2G EVALKIT
ea.
User manual


Product details

  • Board Type
    Evaluation Board
  • Family
    LITIX™ Power
  • Go-wider-Board
    Yes
  • Input Type
    DC
  • Iout max
    350 mA
  • Output Voltage range
    33 V to 47.4 V
  • Qualification
    Automotive
  • Sub Application
    Daytime runnning light
  • Supply Voltage range
    8 V to 27 V
  • Target Application
    Lighting, Automotive
  • Topology
    Boost

Recommended
OPN
TLD5099EPB2GEVALKITTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Country of Assembly (CoA)
SI
Country of Diffusion (CoD)
SI
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Country of Assembly (CoA)
SI
Country of Diffusion (CoD)
SI
ea.
in stock

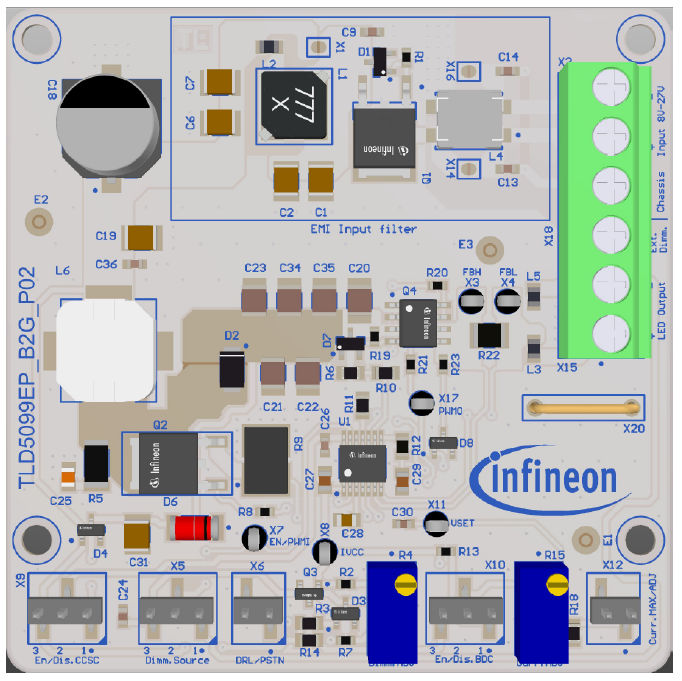

TLD5099EP_B2G is an evaluation board in boost to ground topology designed as LED driver. It can deliver up to 13W with efficiency above 90%. The board is also equipped with the following features, enabled by jumpers:Output current adjustment trimmerPower Derating CircuitryEmbedded PWM EngineCold Crank Survival Circuit (CCSC)
