SP49 DEV KIT

XENSIV™ - SP49 development kit for SP49 tire pressure monitoring (TPMS) sensor family
Application Notes
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SP49 DEV KIT
SP49 DEV KIT
Application Notes

Product details

  • Applications
    Tire Pressure Monitoring System (TPMS)
  • Board Type
    Evaluation Board
  • Family
    SP49 Family
  • Product Name
    SP49 DEV KIT
Recommended
OPN
SP49DEVKITTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

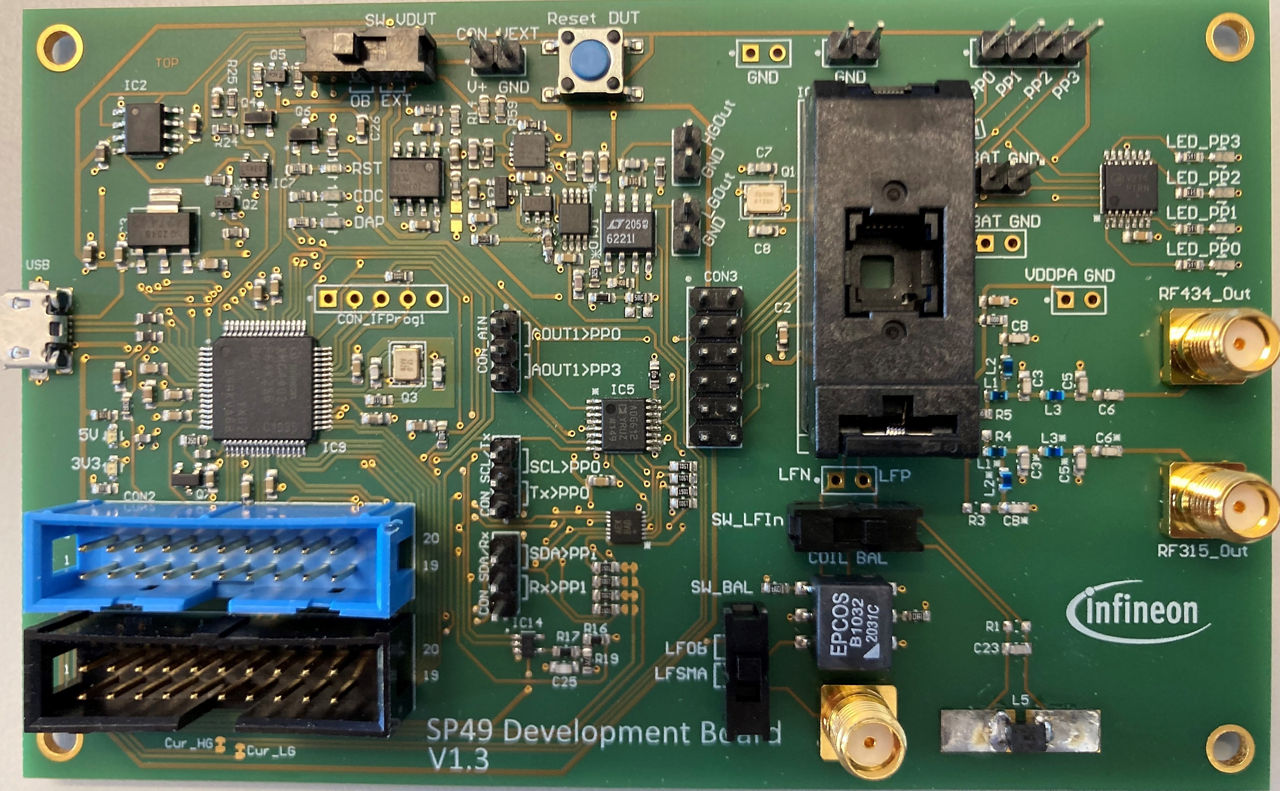

The SP49 development-kit contains the SP49 development-board and shall enable the user to develop, debug and test his code.

Features

  • Featuring SP49 TPMS sensors
  • Variable power supply to SP49
  • Current measurement with different gains
  • XMC4402 Debugging controller
  • Can be routed to I2C master or VCOM
  • On-board LF source generator
  • LF Input from different external sources
  • Pre-mounted SP49 Prog_Adapter
  • Socket for ext.programming
  • Analog to SP49
  • Software development and debugging board
