SHIELD_BTS7004-1EPP

User Manual
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SHIELD_BTS7004-1EPP
SHIELD_BTS7004-1EPP
ea.
User Manual

Product details

  • Board Type
    Demo Board
  • Dimensions
    59.7mm x , 53.4mm x
  • Family
    High-side switches, PROFET™ +2 12V
  • Input Type
    DC
  • Interfaces
    ARDUINO footprint
  • Qualification
    Automotive
  • Sub Application
    Body control module, Lighting, Heating, Glow plug controller, Power Distribution Center
  • Supply Voltage
    -16 V to 35 V
  • Target Application
    Automotive
  • Topology
    High-side switch
Recommended
OPN
SHIELDBTS70041EPPTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

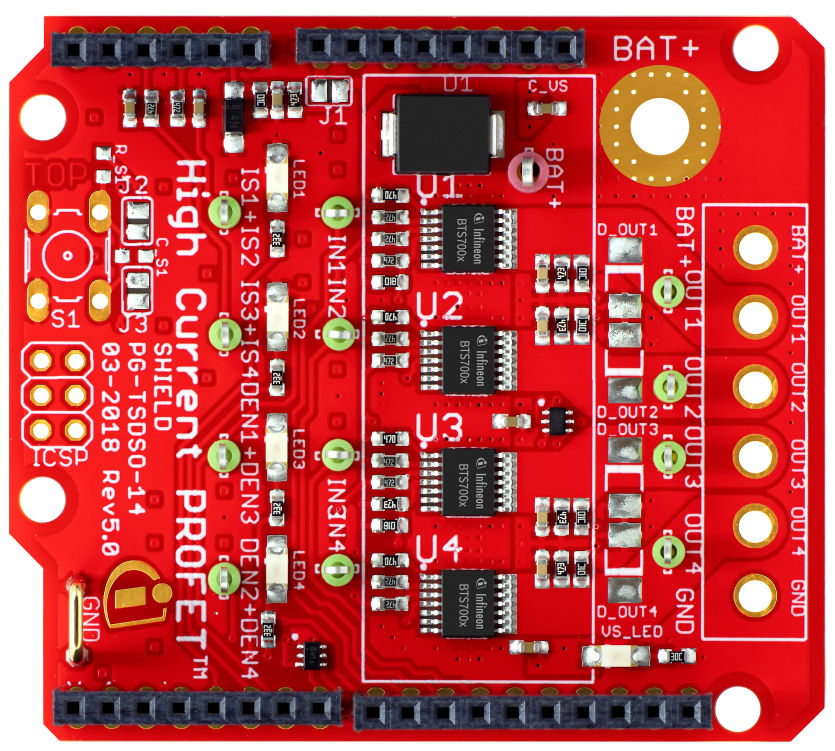

The Arduino shield features 4 high side switches BTS7004-1EPP (15A nominal current per output). It demonstrates relay and fuse replacement, controlling and protecting 12V supply outputs, switching loads (e.g. bulbs, heating resistors, motor drives), measuring load current, and detecting no-load conditions. The PROFET™ +2 12V family targets high current automotive applications, including ECU power feeds, auxiliary power outlets, and heaters.

Features

  • RDS(ON) footprint 2mΩ – 8mΩ in TSDSO-14
  • Protection concept with current trip
  • Diagnosis with high current sense
  • flexibility across the family by pin
  • Miniaturization / Shrink of the PCB Area

Benefits

  • 50% Lower Internal Operating Current
  • Current sense accuracy ≤ 5% @ load
  • Smaller package size for area savings
  • Ultra-low leakage: ≤ 0.5 μA @ 85°C

Applications

Bill of Material

Documents

Documents

Design resources

Partner solutions

Developer community
