SBC-SHIELD_TLE9471

User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SBC-SHIELD_TLE9471
SBC-SHIELD_TLE9471
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    System Basis Chip (SBC), OPTIREG™ SBC
  • Input Type
    DC
  • Output Voltage
    4.9 V to 5.1 V
  • Qualification
    Automotive
  • Sub Application
    Steering column and steering lock, Fuel pump, Smart Power Distribution modules, Light Control Unit (LCU) for front, and rear, Gear shifter and selectors, Heating, ventilation and air conditioning (HVAC), Closure (power lift gate, sliding door, etc.), Seat belt pretension, Seat control module
  • Supply Voltage
    9 V to 12 V
  • Target Application
    Automotive
  • Topology
    DC-DC converter
Recommended
OPN
SBCSHIELDTLE9471TOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

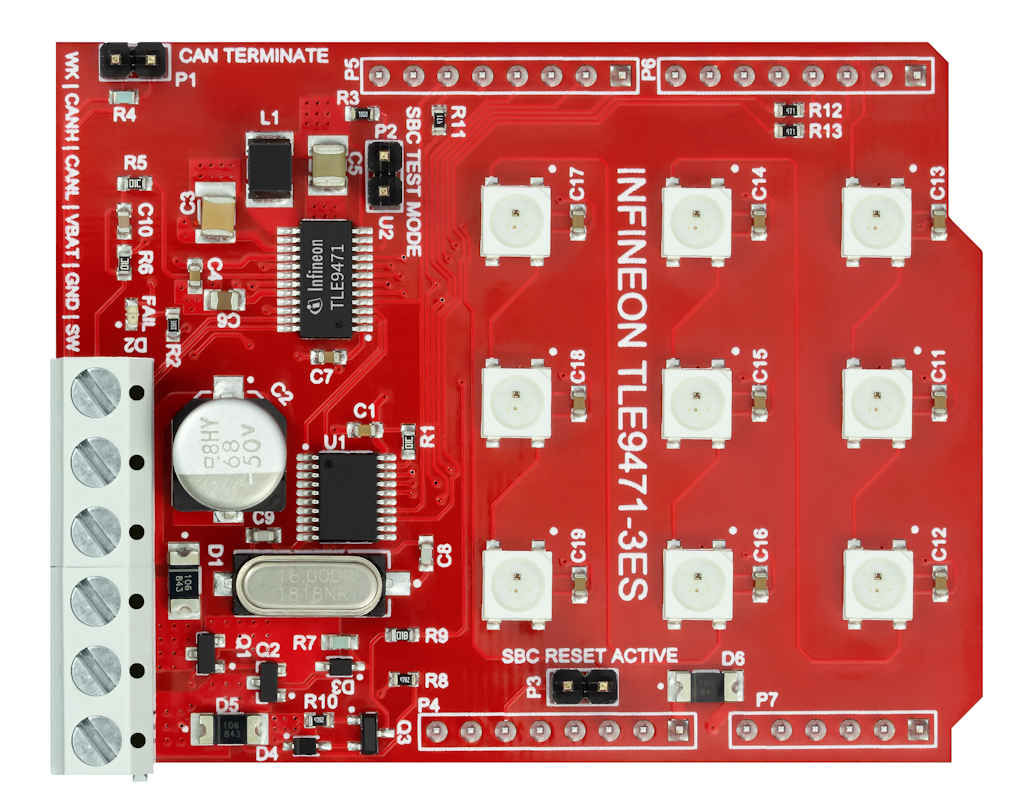

The Lite DCDC SBC Shield with TLE9471-3ES is designed for automotive CAN applications. It features a 5V low dropout voltage regulator, off-board sensor supply protection, HS-CAN transceiver for CAN FD and Partial Networking, high-voltage GPIO, and a 16-bit SPI. It offers low-power modes, configurable watchdog, fail output, and undervoltage reset. Wake-up options include messages, bi-level monitoring, and cyclic wake.
