RIC7S113EVAL1

Gate driver evaluation board demonstrates the functionalities and key features of the rad hard RIC7S113 400V high and low side gate driver IC when driving 650V rad hard PowerMOS MOSFETs.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

RIC7S113EVAL1
RIC7S113EVAL1

Product details

  • Board Type
    Evaluation Board
  • Family
    Rad hard ICs
  • Qualification
    Space
  • Target Application
    Space, Satellite bus and payload, power conditioning unit, power distribution unit, DC-DC converter, motor drive
Recommended
OPN
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type N/A
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant

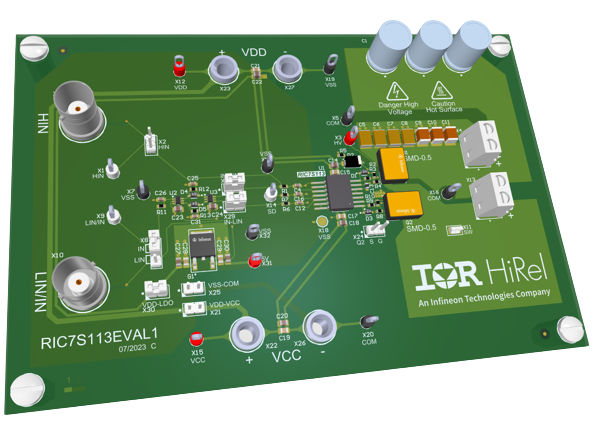

RIC7S113EVAL1 gate driver evaluation board demonstrates the functionalities and key features of the rad hard RIC7S113 400V high and low side gate driver IC when driving 650V rad hard PowerMOS MOSFETs. In a half-bridge configuration, the board supports SMD-0.5 and SMD-0.5e packages. It has a bootstrap package for high side bias power and supports single and independent input logics, as well as independent and combined VDD and VCC supply.

Features

  • Includes two 650V rad hard PowerMOS MOSFETs in half bridge configuration
  • Supports SMD-0.5 and SMD-0.5e transistor packages
  • Bootstrap circuit for high side bias power
  • Supports single and independent logic inputs
  • Supports independent and combined VDD and VCC supply
