RIC74424EVAL1

Gate driver evaluation board demonstrates the functionalities and key features of the rad hard RIC74424H 20V non-inverting dual output MOSFET driver IC when driving rad hard R9 MOSFET

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

RIC74424EVAL1
RIC74424EVAL1

Product details

  • Board Type
    Evaluation Board
  • Family
    Rad hard ICs
  • Qualification
    Space
  • Target Application
    Space, Satellite bus and payload, power conditioning unit, power distribution unit, DC-DC converter, motor drive
Recommended
OPN
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type N/A
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant

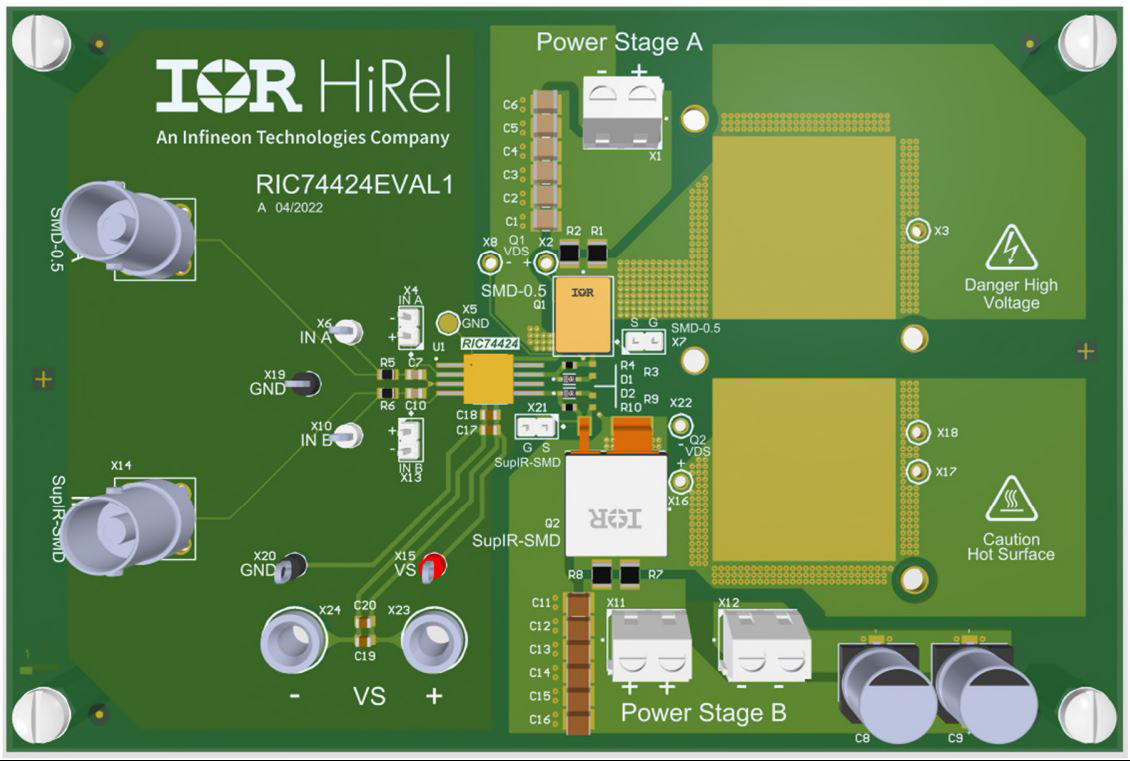

RIC74424EVAL1 gate driver evaluation board demonstrates the functionalities and key features of the rad hard RIC74424H 20V non-inverting dual output MOSFET driver IC when driving rad hard R9 MOSFET. Independent power stages configured for switching time test circuit enable quick measurements of key timing at desired operating conditions. PCB layout and test points are optimized for ease of use in engineering evaluation.

Features

  • Supports SMD-0.5, SMD-0.5e and SupIR-SMD transistor packages
  • Independent power stages configured for switching time test circuit allows for quick measurements of key timing at desired operating conditions
  • PCB layout and test points optimized for ease of use for engineering evaluation

Applications
