REF_PMG1_S3_DOCK
REF_PMG1_S3_DOCK
User Manual

Product details

  • Board Type
    Evaluation Board
  • Configuration
    Single Phase
  • Family
    USB PD Controller
  • Input Type
    DC
  • Output Current
    0.5 A to 5 A
  • Output Voltage
    3.3 V to 28 V
  • Pout
    15 W to 140 W
  • Qualification
    Consumer
  • Sub Application
    Consumer
  • Supply Voltage
    3.3 V to 32 V
  • Target Application
    Docks
  • Topology
    USB
OPN
REFPMG1S3DOCKTOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 0
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

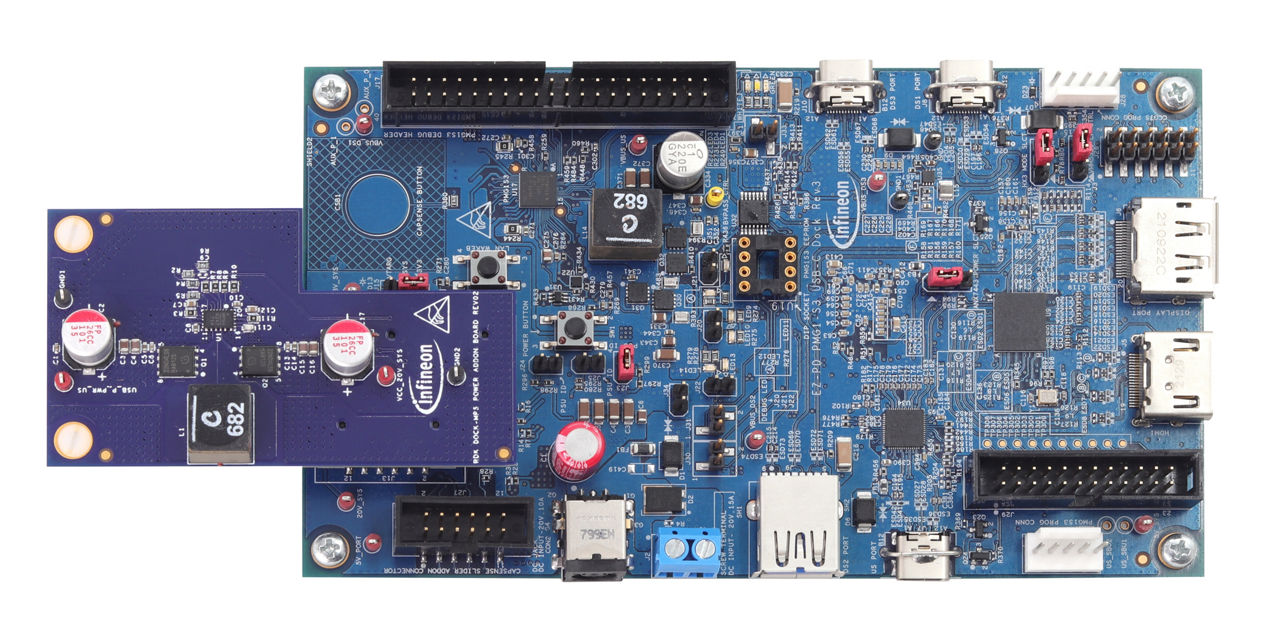

REF_PMG1_S3_DOCK is a reference design showcasing the PD controller and dock management capabilities of EZ-PD™ PMG1-S3 in a docking application. It has 1 UFP (upstream facing port), 3 DFPs (downstream facing ports) of which DS1 & DS3 are Type-C and DS2 is a Type-A port, 1 Display Port and 1 HDMI Port. The dock software development kit (SDK) supports EZ-PD™ PMG1-S3 USB-C dock. The SDK also supports Intel Thunderbolt designs.

Features

  • USB-C PD 3.1 Dock with 140 W EPR support
  • 1 Upstream USB-C PD Port (UFP)
  • 2 Downstream USB-C PD ports (DFP)
  • USB 3.1
  • Display port support
  • HDMI support
  • Dock SDK for easy code development
  • GUI tool for configuring USB-C PD ports
  • Easy customization

Benefits

  • Fully programmable and flexible design
  • Allows easy application development
  • SDK on ModusToolbox™ and PMG1 kits
  • Validated and interop tested
  • Enables faster time to market

Applications
