LITIX™ LED Platform Animated Exterior reference design - to be used with SHIELD_LED_PLATFORM Arduino shield
Getting Started
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_LEDP_ANI_EXT
REF_LEDP_ANI_EXT
Getting Started

Product details

  • Board Type
    Reference Board
  • Configuration
    Linear current sink
  • Description
    The REF_LEDP_ANI_EXT is a reference design developed for automotive animated exterior lighting application
  • Dimensions
    111.8 mm x 47.8 mm
  • Family
    LITIX Pixel Rear
  • Input Type
    DC
  • Interfaces
    UART over CAN
  • Output Current
    5.6 mA to 76.5 mA
  • Qualification
    Automotive
  • Supply Voltage
    6 V to 18 V
  • Target Application
    Automotive , Lighting
  • Topology
    Linear
OPN
REFLEDPANIEXTTOBO1
Product Status coming soon
Infineon Package LG-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package LG-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

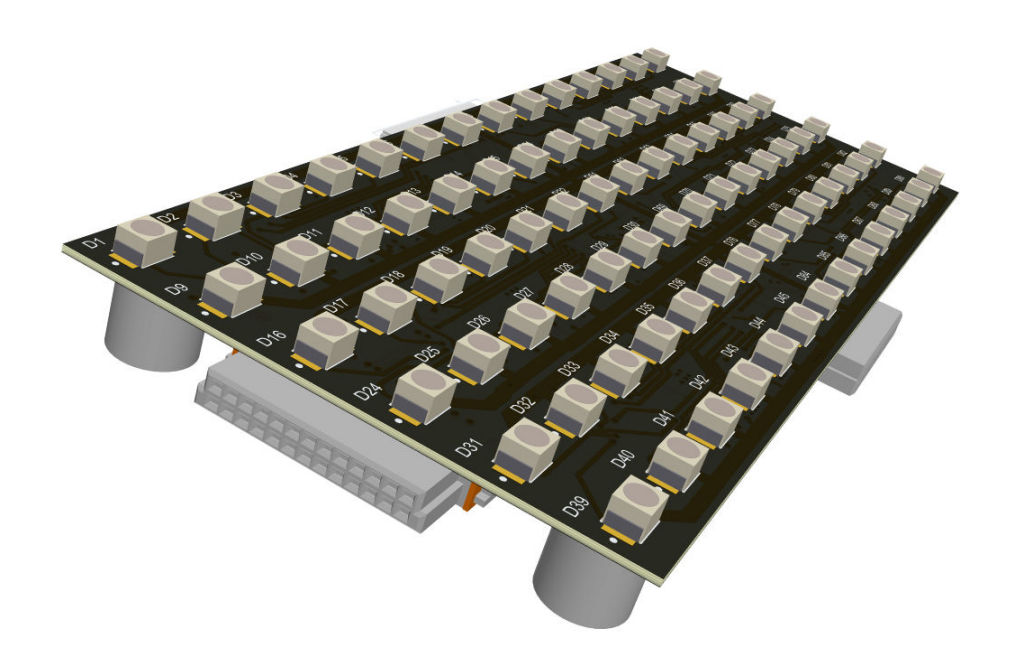

The REF_LEDP_ANI_EXT is a reference design developed for automotive animated exterior lighting application. This reference design serves as a reference for thermal performance and electrical design, optimized in BOM and PCB size.  In a complete system offering, REF_LEDP_ANI_EXT is used alongside LITIX™ SHIELD_LED_PLATFORM Arduino Shield, Traveo™ II Starter Kit, and uIO-Stick V2.
