REF_CCG7SCF_120W_3C

120 W high-efficient three-port USB-C PD adapter using EZ-PD™ CCG7SCF and CCG7SC
Additional Technical Information

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_CCG7SCF_120W_3C
REF_CCG7SCF_120W_3C
Additional Technical Information

Product details

  • Board Type
    Reference Board
  • Dimensions
    63.48 x 44.71 x 23.70 mm
  • Family
    USB PD Controller
  • Frequency
    150 kHz to 600 kHz
  • Input Type
    DC
  • Interfaces
    Type-C x3
  • Output Current
    0 A to 5 A
  • Output Voltage
    3.3 V to 21 V
  • Pout max
    100 W
  • Qualification
    Consumer
  • Sub Application
    USB-C Chargers
  • Supply Voltage
    6 V to 24 V
  • Target Application
    Power Supplies
  • Topology
    Buck
OPN
REFCCG7SCF120W3CTOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 0
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

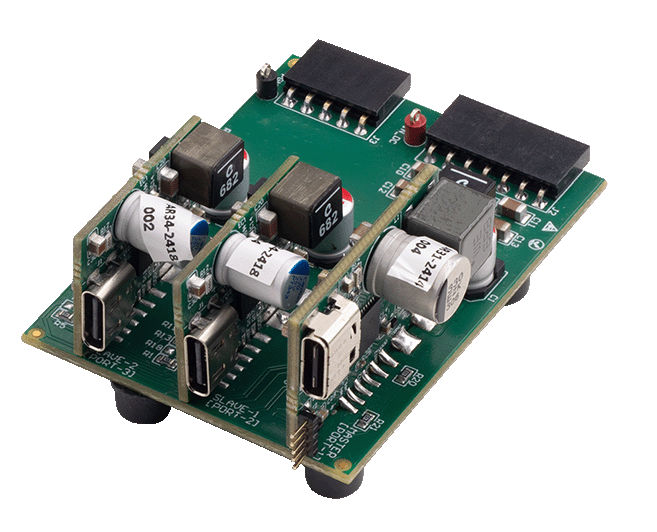

The REF_CCG7SCF_120W_3C is developed for a 3-port USB-C PD adapter. It can be used to support optocoupler-based flyback converters or static DC input. There are feedback signals such as PWM and I2C on the board that can be used for efficiency-optimized control. The design is based on EZ-PD™ CCG7SCF which integrates dual channel USB-PD, DC-DC converter, and FETs and it is capable of doing power-sharing among the port with fault protections.

Features

  • 3 ports USB-C PD adapter solution
  • 100 W max power per port
  • Configurable total power
  • Dynamic load-sharing
  • Multiport efficiency optimized control
  • Feedback control through PWM and I2C
  • Support PD 3.2 SPR with PPS
  • BC1.2, QC5, AFC, UFCS, and Apple 2.4A
  • Support moisture detection
  • 3.3 - 21 V output voltage
  • 5.5 - 24 V input voltage
  • Firmware upgrade through CC

Benefits

  • Meets DoE VI
  • Efficiency optimized control
  • No need external MCU
  • Support field firmware upgrade
  • PD 3.2 SPR PPS and AVS compliant
  • Low standby power consumption
  • Scalable USB-C PD multiport solution
