REF_AUDIO_GANB_750W

Class D audio evaluation board with CoolGaN™
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_AUDIO_GANB_750W
REF_AUDIO_GANB_750W
User Manual

Product details

  • Input Voltage
    36 V
  • Load Impedance
    2 Ω
  • Output Power max
    375 W
OPN
REFAUDIOGANB750WTOBO1
Product Status on request
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

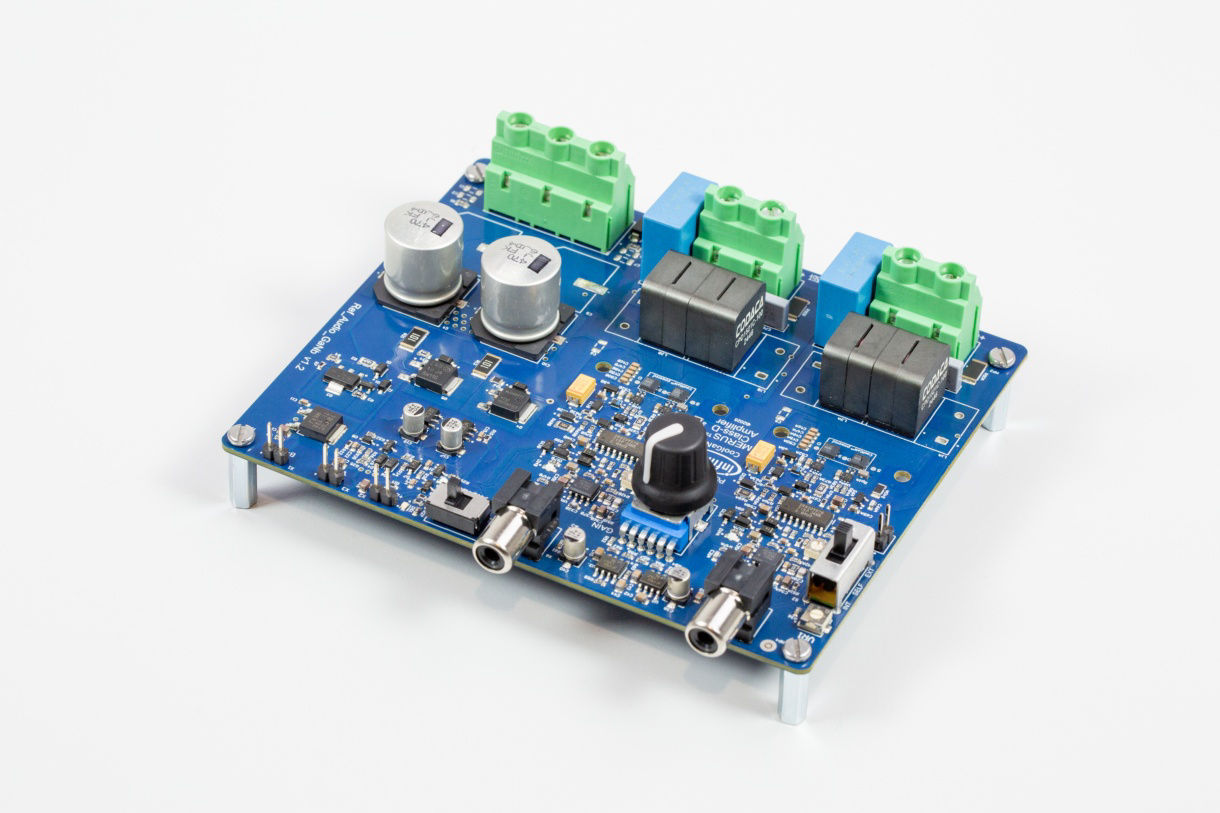

The REF_Audio_GaNc_750W features CoolGaN™ Transistors 100 V G3 combined with the MERUS™ IRS20597SPBF Class D audio driver. The design demonstrates the superior power density and audio performance of CoolGaN™. This two-channel design is scalable up to 375 W x 2ch at 2 Ω without a heatsink. The design includes all the required house keeping power supplies and connectors for ease of use.

Features

  • 375 W x 2 channels
  • -> 10% THD+N, 2 Ω at ±36 V
  • 240 W x 2 channels
  • -> 10% THD+N, 4 Ω at ±40 V
  • Heatsinkless design
  • High & low-side overcurrent protection
  • Overvoltage protection
  • High & low-side undervoltage protection
  • Overtemperature protection
  • Self-oscillating half-bridge topology
  • Onboard clock synchronization

Benefits

  • Superior power density with CoolGaN™
  • Clean switching performance
  • Narrow deadtime for better THD
  • Low residual noise 30 µV
  • IHF-A weighted, AES-17 filter
  • Easy to use
  • Compatible with MERUS™ driver
